Flat Bed Compound Feed Walking Foot Heavy Work Sewing Machines
All Models are Compound Feed Walking Foot, Lock Stitch, and Made in China. | |||||
Model | Description | ||||
![]() |

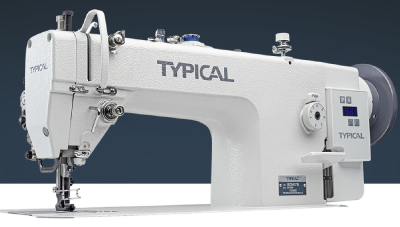

GC0617D See More... |
Side load bobbin. Suitable for a upholstery, horse rugs, car trim, light to medium shade sails, canvas, vinyl. leather. Direct drive, top speed adjustment, synchroniser, and built-in bobbin Winder. |
|||
![]() |

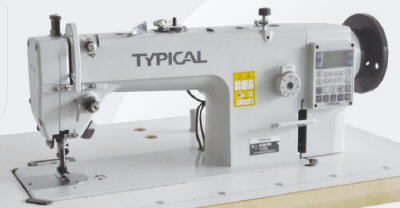

GC0617D2 Auto thread trim. See More... |
Auto thread trim. Same as GC0617D with auto thread trim, reverse stitches and foot lift. |
|||
![]() |
GC0605-F See More... |
Walking Foot Compound
Feed,
Side load bobbin, Climbing Device. Suitable for a upholstery, horse rugs, car trim, light to medium shade sails, canvas, vinyl. leather. |
|||
![]() |

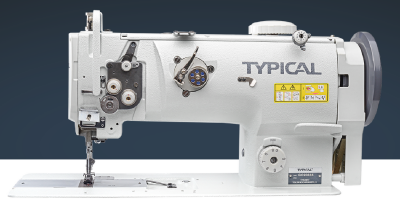

GC20665 1 Needle. GC20666 2 Needle See More... |
Walking Foot Compound Feed, Top Load Bobbin, Climbing
Device.
Suitable for upholstery, horse rugs, car trim, light Shade sails, canvas, vinyl. leather. |
|||
![]() |

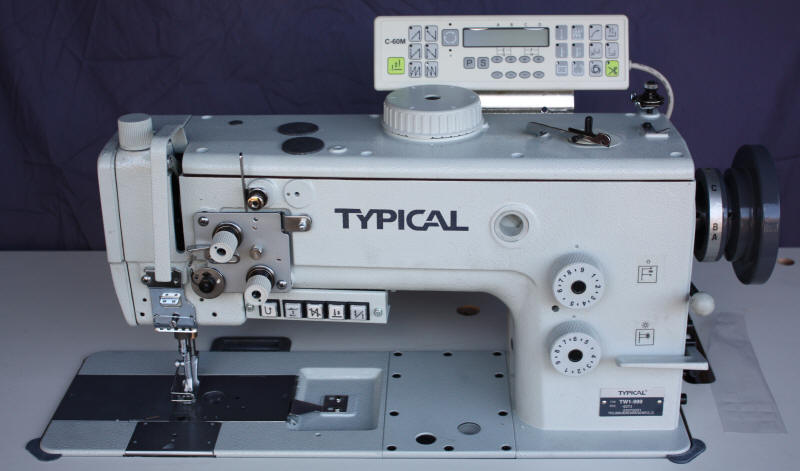

GC20665-D2T3 See More... |
Same as
GC20665 with Ho Hsing electronics. Thread trim ,auto reverse, and foot lift, full features. |
|||
![]() |

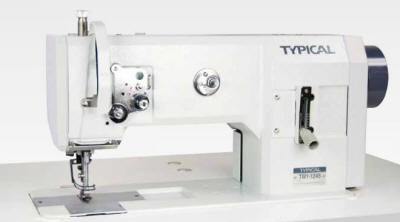

TW1-1245V Binder See More.... |
Walking Foot Compound Feed, Binder. Top Load Bobbin
Pfaff 1245 style. Suitable for upholstery, horse rugs, car trim, light Shade sails, canvas, vinyl. leather. |
|||
|
GC20606D-1, 1 Needle. GC20606 Twin Needle See More... |
Walking Foot Compound Feed,
Top load bobbin, Mitsubish Style. Suitable for a upholstery, car trim, light to medium shade sails, canvas, vinyl. leather. |
|||
![]() |

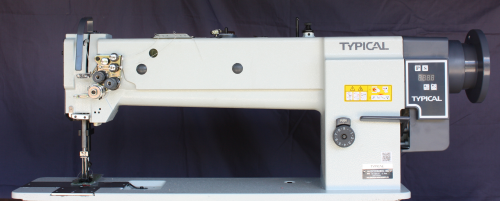

GC20606HL18, 2 Needle GC20606-1HL18, 1 Needle See More... Long Arm, Top Load Bobbin. Available from 18 inch to 30 inch arm, raised arm to right of needle for generous clearance. |
||||
![]() |

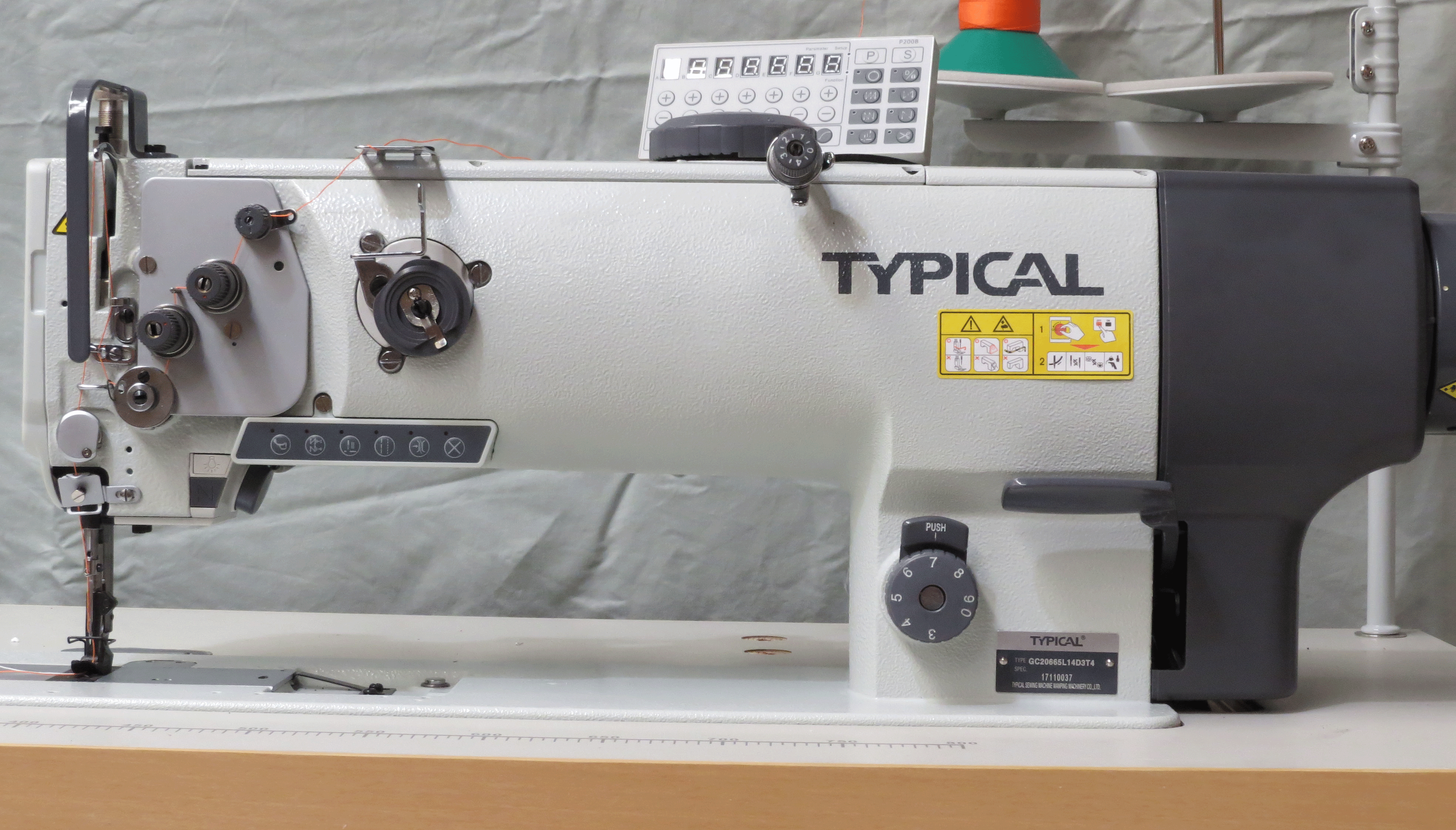

GC20665L14-D2T4 1 Needle. Long Arm, Top Load Bobbin Auto Thread Trim, Auto Foot Lift. Feature packed machine, follow link to see all features. See More... |
Comparison, and Specifications, prices are a guide only, and subject to change. Top...
Model |
Max.
Thread Size |
Drive | Stitch Length | Bobbin | RPM | Foot Lift | Work Area |
Bed Dimensions |
Lubrication | Needle |
GC0617D | M20 | Servo Direct | 0-8 mm | Large 25X11mm | 2000 | 16 mm Knee Press |
26 X 13 cm
|
48 X 18 cm |
Auto | 135X17 (DPX17) |
GC0605-F | M20 | Servo via Belt | 0-7mm | Large 25X11mm | 2000 | 16 mm Knee Press |
26 X 13 cm
|
48 X 18 cm |
Auto | 135X17 (DPX17) |
GC20665 GC20666 |
M20 | Servo via Belt | 0-9mm | Large | 2500 |
16mm Knee Press |
26 X 11 cm | Auto |
135X17 DPX17 |
|
TW1-1245V | M20 | Servo via Belt | 0-8 mm |
Large 25X10mm |
2000 | 14mm Knee Press | 25 X 11 cm | 48 X 18 cm | Simi Auto | 134-35 |
GC20626-1 | M35 | Servo via Belt | 0-10mm |
Large 27 X 11mm |
2000 | 13mm Knee Press | 25 X 11 cm | 51 X 18 cm | Simi Auto | 135X17 (DPX17) |
GC20626-1-CX | M8 | Servo via Belt | 0-10mm |
Large 27 X 11mm |
1800 | 13mm Knee Press | 25 X 11 cm | 51 X 18 cm | Simi Auto | 135X17 (DPX17) |
GC20606-1HL18, 1 Needle | M20 | Servo via Belt | 0-8 mm | Large 29X12mm | 2000 | 16 mm Knee Press |
150mmX 457 mm
|
600 X 18 cm |
Auto | 135X17 (DPX17) |
GC20665L14-D2T4 1 | M20 | Servo Direct | 0-9mm |
Large 29X12mm |
2500 | 18mm | 360X103mm | Auto |
135X17 DPx17 |
