SEW UNIQUELY
Flat Bed Walking Foot Heavy Duty Sewing Machines.
| All machines are walking foot, with servo motors, and side load large bobbin. | |||
 |
|||
| Picture | Model | Description | |
 |
GC0303D GC0303D-CX See More... |
GC0303D, Direct Drive, Auto.
Lube., Large Bobbin, Needle Positioning. In Stock. Suitable for a upholstery, horse rugs, car trim, light to medium shade sails, canvas, vinyl. leather. GC0313D-CX Same as GC0303D with Thick thread Capabilities 12M, and 12 mm stitch length. More... |
|
 |

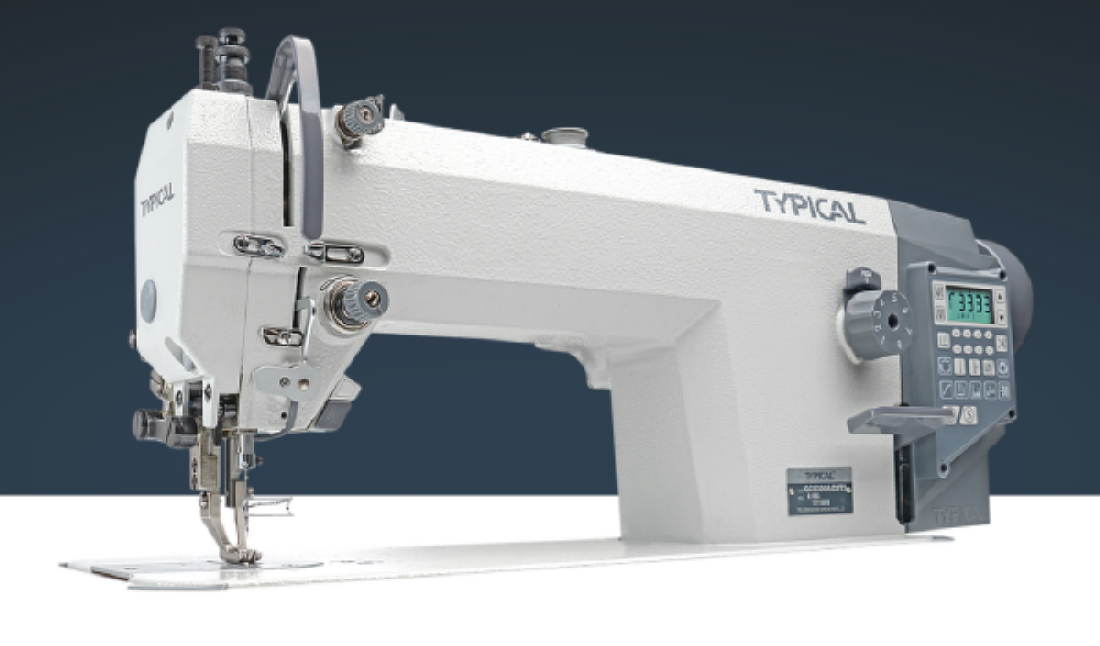

GC0330D-3T2 See More... |
GC0330D-3T2 Auto
thread trim, Auto foot lift, with inbuilt control panel,
direct drive, walking foot machine. Synchroniser, top speed adjustable by operator built in bobbin Winder, Auto lube. Suitable for a upholstery, horse rugs, car trim, light to medium shade sails, canvas, vinyl. leather. In Stock. |
|
 |
GT2530D See More... |
GT2530D Zig Zag Walking
foot.
Direct Drive Servo with needle positioning. SOLD OUT. Available by special order. Suitable for canvas, leather, Ideal for Holland blinds. |
|
 |
GC0313D
GC0313D-CX GC0313DBX See More... |
GC0313D, Extended Arm, Direct Drive,
Auto. Lube., Large Bobbin, Needle Positioning. Synchroniser, top speed adjustable by operator , Auto lube., Built in bobbin Winder. GC0313D-CX, Extended Arm, Direct Drive, Auto. Lube., Large Bobbin, Needle Positioning. Same as GC0313D with 12 mm stitch length, and up to size 12 M thread. GC0313DBX Same D-CX with triple size bobbin 30X11mm. Suitable for a upholstery, horse rugs, car trim, light to medium shade sails, canvas, vinyl. leather. |
|
 |

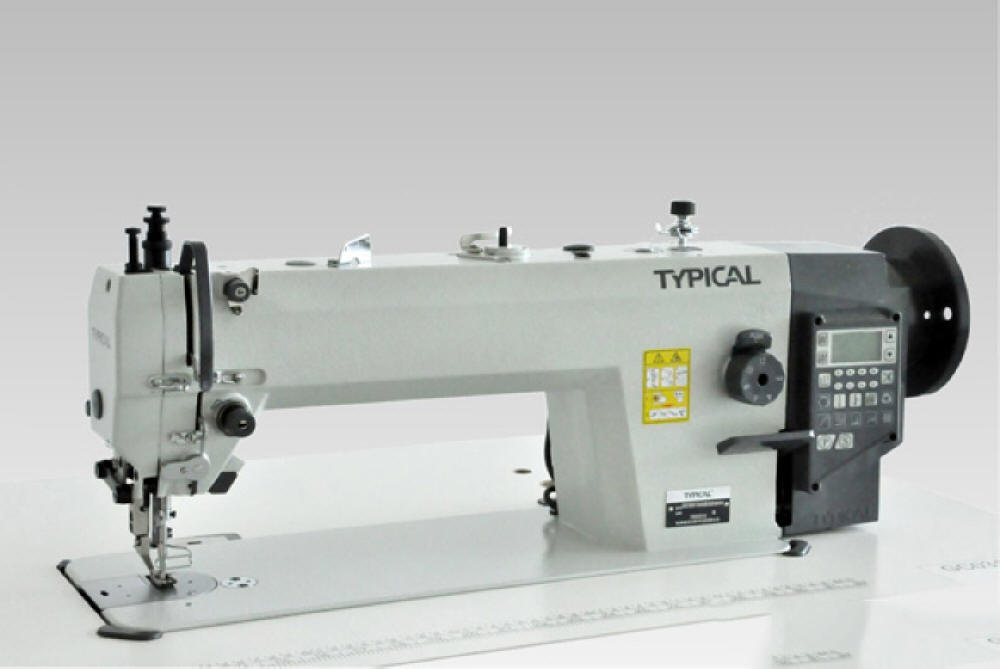

GC0313D3T2... GC0313AD3T2-CX.. GC0313ABXD3T2 See More... |
GC0313AD23 Extended Arm, Direct Drive, Thread trim, Auto. foot lift, Auto. Lube., Control panel, Large Bobbin, Needle Positioning, Synchroniser, top speed adjustable by operator , Auto lube., Built in bobbin Winder. GC0313AD23-CX Same as GC0313AD23 With 12mm stitch length, 12M thick thread GC0313ABXD3T2 Same as GC0313DBX With Auto thread trim, Direct drive, Auto reverse, Control panel. SOLD OUT. Available by special order. |
|

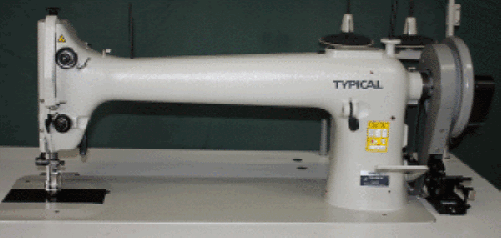

 TW1-2BL20 Catalogue... More... |
Very Heavy Duty Walking Foot Extra large bobbin, reverse, positive feed. Suitable for Shade Sails, Webbings, Tarps, Horse rugs. |
||
See TYPICAL Walking Foot Compound Feed...
Comparison, Specifications. Prices are a guide only, and subject to change. Top...
| All machines are walking foot, With servo motor and table included in price, Knee press 16mm foot lift, and Made in China. PRICES ARE A GUIDE ONLY. | ||||||||||||||
| Model |
Max.Thread Size |
Auto with Thread Trim | Inbuilt Bobbin Winder | Stitch Length | Bobbin | Lubrication | Needle | Direct Drive |
Synchroniser Needle Positioning |
Top Speed Adjust | RPM |
Extended Arm |
Work Area |
Bed Dimensions |
| GC0303D | M20 |
 |
0-8 mm | 25X11mm | Auto. |
135X17 DPX17 |
|
|
|
2000 |
26 X 13 cm
|
48 X 18cm | ||
| GC303D-CX | M12 | 2-12 mm |
|
|||||||||||

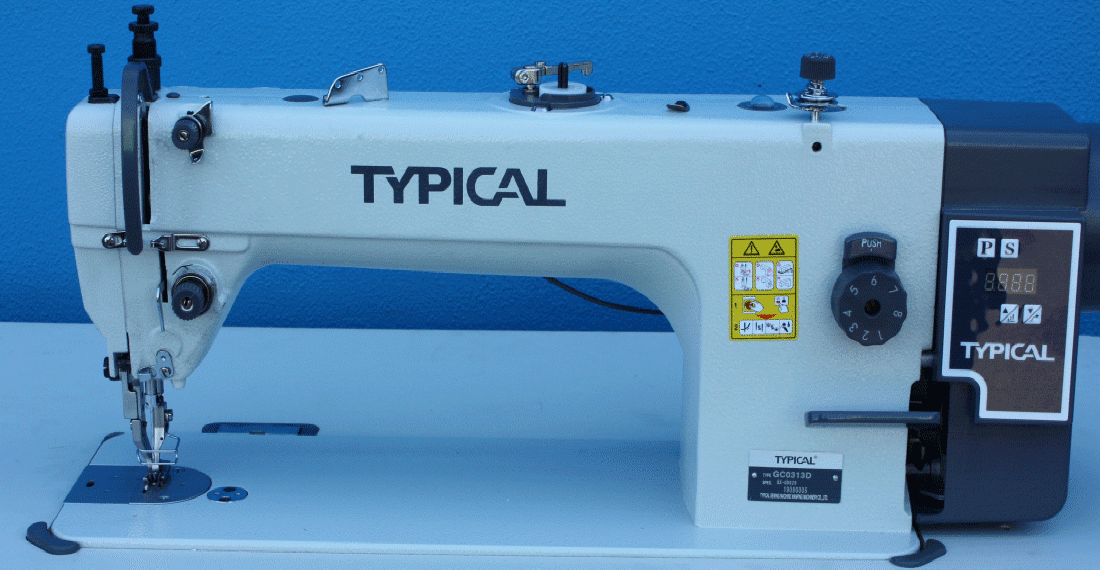

| GC0303D2 | M20 |
|
0-8 mm | Ho Hsing Servo via Belt |
||||||||||
| GC0330-DM3 | M20 |
|
|
|||||||||||
| GC0313D | M20 |
|
|
33 X 13 cm | 51 X 18cm | |||||||||
| GC0313D-CX | M12 | 2-12 mm |
|
1800 |
|
|||||||||
| GC0313DBX | M12 | 30X11mm |
|
|
||||||||||
