SEW UNIQUELY

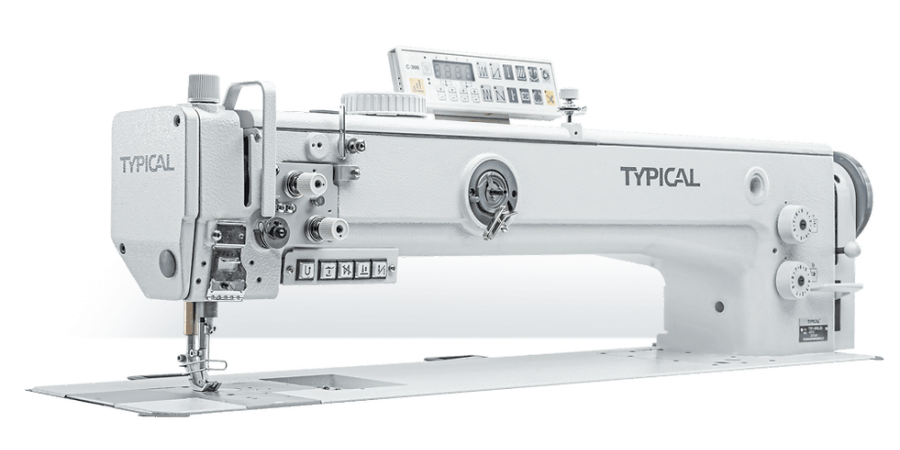

TYPICAL TW1-898L28-D2T3 Long Arm 28 inch 711mm arm Single
Needle. TYPICAL TW2-898L28-D2T3 Long Arm 28 inch 711mm arm Twin Needle. Clearance under arm 4.7 Inch 120mm Height. Option With Twin Needle to Easily Ho Hsing Electronics. Led light. Top load large bobbin 28X12mm. Automatic Oil Pump Lubrication. |
||
TYPICAL TW1-898L28-D2T3 Long Arm 28 inch 711mm arm Single
Needle. TYPICAL TW2-898L28-D2T3 Long Arm 28 inch 711mm arm Twin Needle. Price on Application. |
||

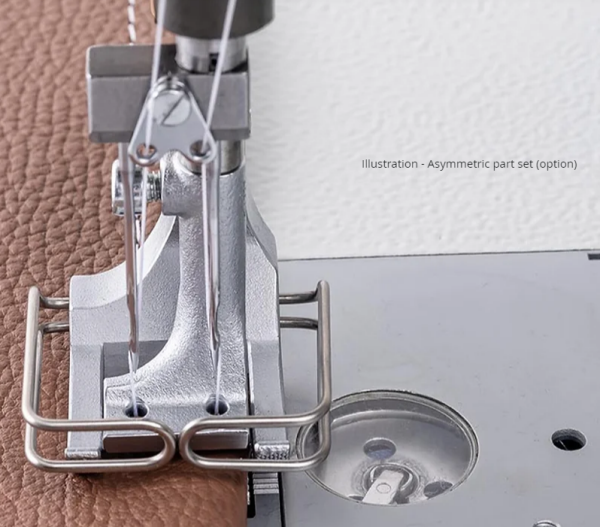

< Asymmetrical Option: Easily Change Twin Needle to Single Needle. | ||

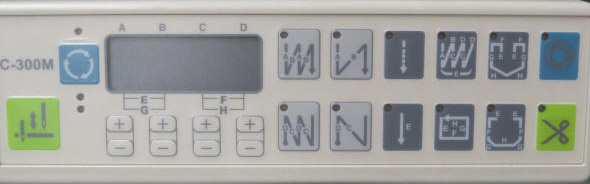

Ho Hsing Full Featured Panel. > | ||
< Most Used features Easily Accessed in front of Operator. | ||
Go from small

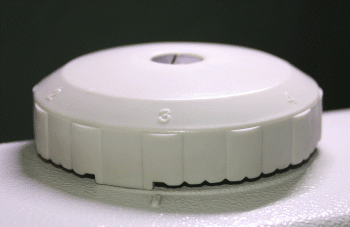

to large stitch, large to small at flick of a button. > with 2 stitch length dials. > |
||
< Built in bobbin winder with trim knife, and easy wind. | ||
Quick and easy adjustment of foot lift for cross seams. > |
Model | |||||||||||
TW1-898L28 D2T3 TW2-898L28 D2T3 |
Stitch |
Drive |
Needle Positioning |
Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Lubrication | Needle | Thread |
TW1-898L28 D2T3 Single Needle | Lock Stitch |
Ho Hsing Belt Drive |
0-9 mm |
Large 26X12mm | Compound Feed | 1700 | 16m Automatic | Auto | 135X17 (DPX17) |
Up to M20 |
|
TW2-898L28 D2T3 Twin Needle |
Automatic Model | Thread Trim | Back Tack 2 Start |
Back Tack 2 Finish |
Back Tack 4 Start |
Back Tack 4 Finish |
Max. Tack Stitches |
Programmable |
Turn on/off Trim |
6 Bar Tack |
Reverse Switch |
Change Needle up/Down |
TW1&2-898L28 D2T3 |
