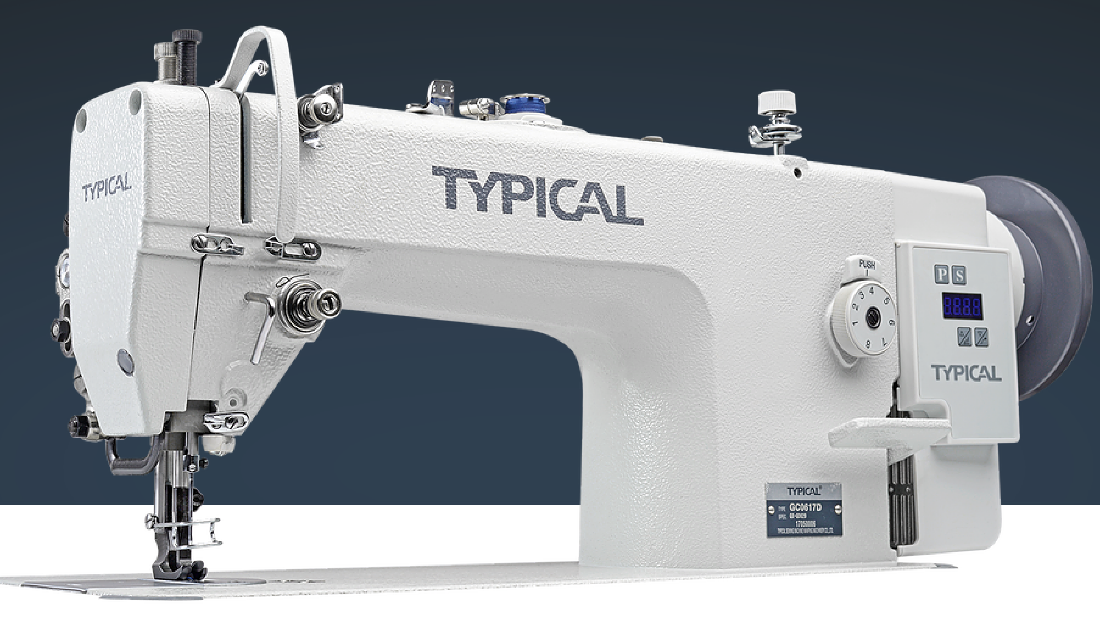

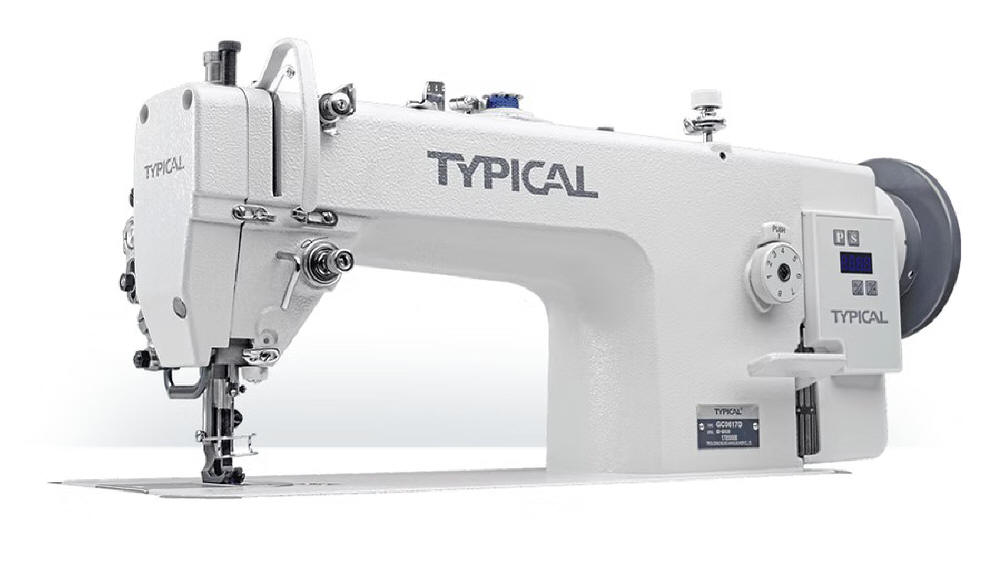

Typical GC0617D Walking Foot Compound Feed, Direct Drive, Side Load Bobbin, Auto Lube.

HOW to PURCHASE...

Unsolicited Feed Back  reproduced with permission.

Linda of Kinglake Vic. had this to say "The machine is fabulous, so much more easier to use than my old machine" 14-04-2016



GC0617D Now with new control panel not shown.
Set top speed, Slow start, Reverse needle stop position, 15 Settings options.
High torque servo direct drive motor, delivers power (750 Watts), and excellent control at low speed. Top Speed adjustable to 2000 RPM.
Available with synchronised binder $550.00 + GST extra with one shell binder to suit.
Needle Positioning.
8mm, stitch length, with stitch length lock to provide stable stitch length.
Built in bobbin winder, and automatic lubrication.
Takes standard  compound feed feet
SEAMS UNIQUELY   .
Prices are a guide only, and subject to change.
Walking Foot

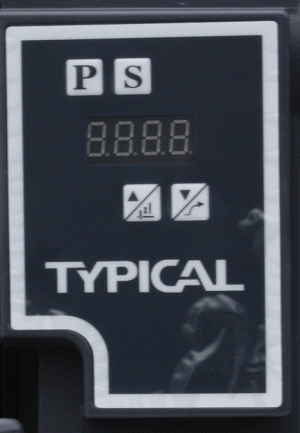

 New Control Panel.
Set top speed, Slow start, Reverse needle stop position,
15 Settings options.
 Automatic Lubrication.


Built in bobbin winder Bobbin case and large bobbin 25X11mm Stitch Length to 8mm
with locking device

Options

Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch foot.

Bench mounted led light. Australian made bench top.

Synchronised swing out binder $550.00 + GST, With one shell binder to suit.

HOW to PURCHASE....

Model  Drive Thread
Size 		 Stitch Stitch Length Large Bobbin Feeding RPM Foot Lift   Work Area Needle Made in
GC0617D Servo
Direct
 M20 Lockstitch 0-8mm Large
25X11mm		 Walking Foot
Compound
Feed		 1,800 15mm  27X13cm 135x17
DPX17		 China
Motor Make Type Needle Positioning Volts Output Power HP RPM Made In GST
GC0617D Typical Servo Yes 180-284 750 Watts 0.75HP 1800 China Included
