SEW UNIQUELY
TYPICAL GC0605F Compound Feed, Side Load Bobbin, Climbing Device, and Ho Hsing G60 Servo.
TYPICAL GC0605F-D2T3 Compound Feed, Thread Trim, Auto. Foot Lift, Side Load Bobbin, Climbing Device, and Ho Hsing Fully Automatic.
Available fully automatic GC0605F-D2T3
High torque Ho Hosing G60 servo drive motor, delivers power (750
Watts), and excellent control at low speed. Top Speed
adjustable to 2000 RPM.
Needle Positioning
Climbing device to adjust climbing height of feet.
9mm, stitch length, Safety clutch to prevent damage from
thread lock.
Built in bobbin winder, and simi automatic lubrication.
Takes standard compound feed feet
SEAMS UNIQUELY
.
Compound Feed
Walking Foot
Safety Clutch
Climbing Device
Built in bobbin winder
Bobbin case and large
bobbin 25X11mm

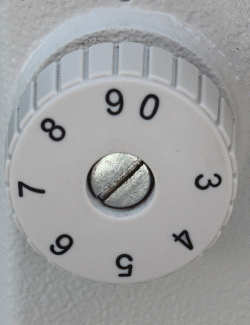

Stitch Length to 9mm
Options
Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch foot.
Bench mounted led light. Australian made bench top.
Swing out binder, to take all sizes of shell binders.
| Model | Drive |
Thread Size |
Stitch |
Thread Trim |
Stitch Length | Large Bobbin | Feeding | RPM | Foot Lift |
Climbing device |
Safety Clutch | Work Area | Needle | Made in |
| GC0605NA |
Servo By Belt |
M20 | Lockstitch | 0-9mm | Large 25X11mm |
Compound Feed Walking Foot |
2,000 | 16mm |
 |
|
27X13cm | 135x17 DPX17 |
China | |
|
|
Automatic |
| Motor | Model | Type | Needle Positioning | Volts | Output Power | HP | RPM | Made In | Price |
| Ho Hsing | G60 | Servo | Yes | 180-284 | 750 Watts | 0.7HP | 2000 | Taiwan | Included |
| Automatic Model | Thread Trim | Back Tack 2 Start/Finish |
Back Tack 4 Start/Finish |
Max. Tack Stitches |
Programmable |
Turn on/off Trim |
6 Bar Tack |
Reverse Switch |
Change Needle up/Down |
|
Ho Hsing GC0605F-D2T3 |
|
 |
 |
 |
 |
 |
 |
 |
 |
