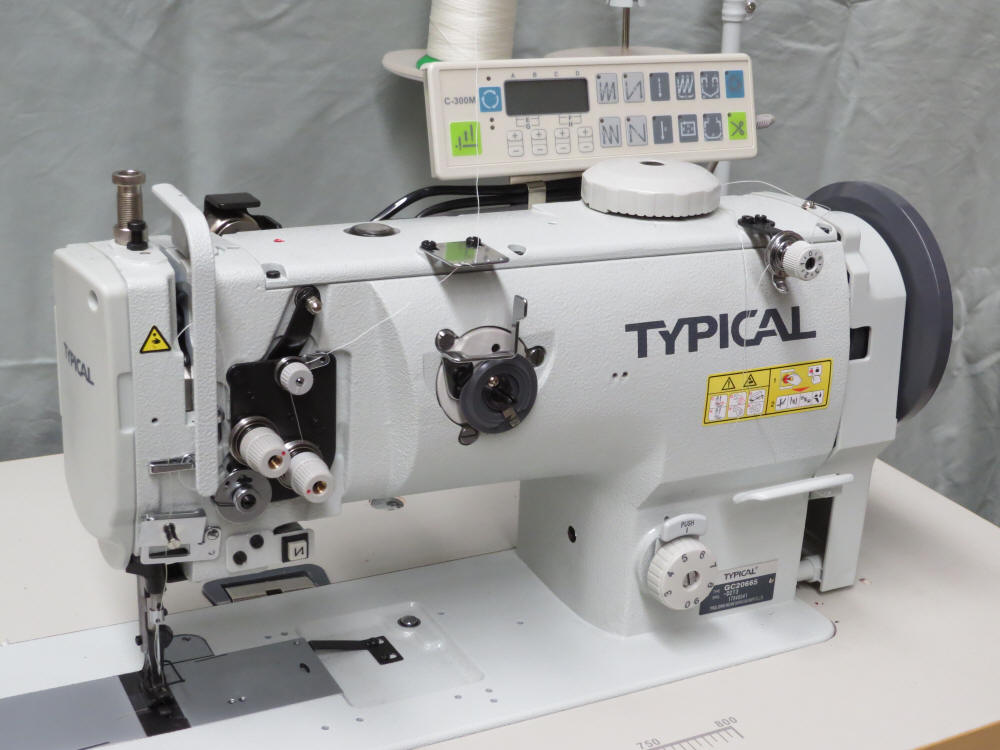

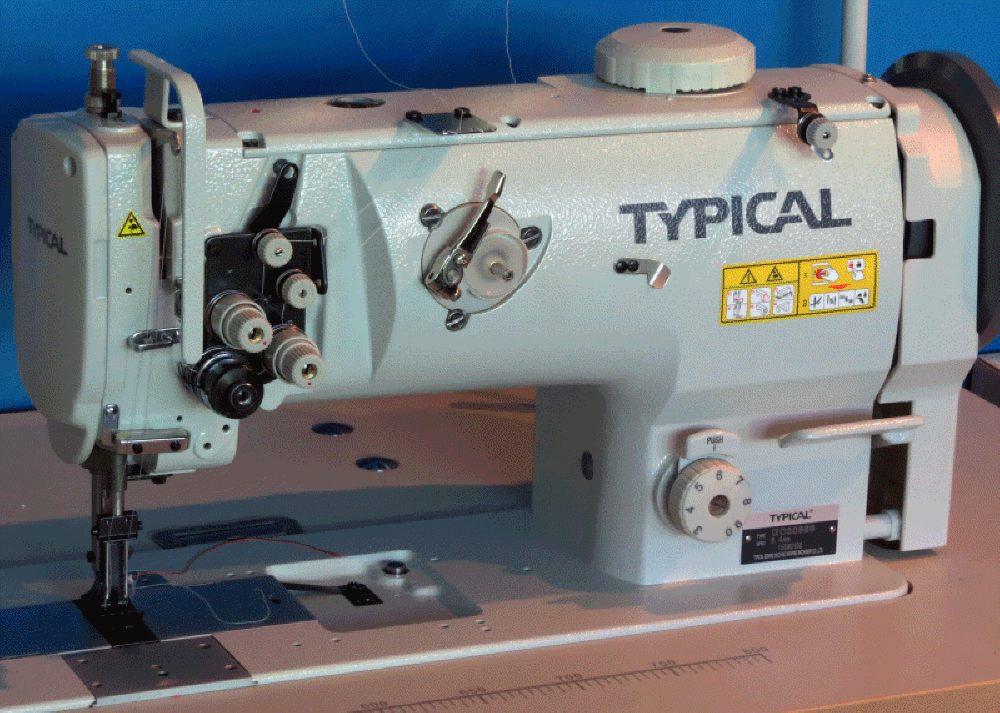

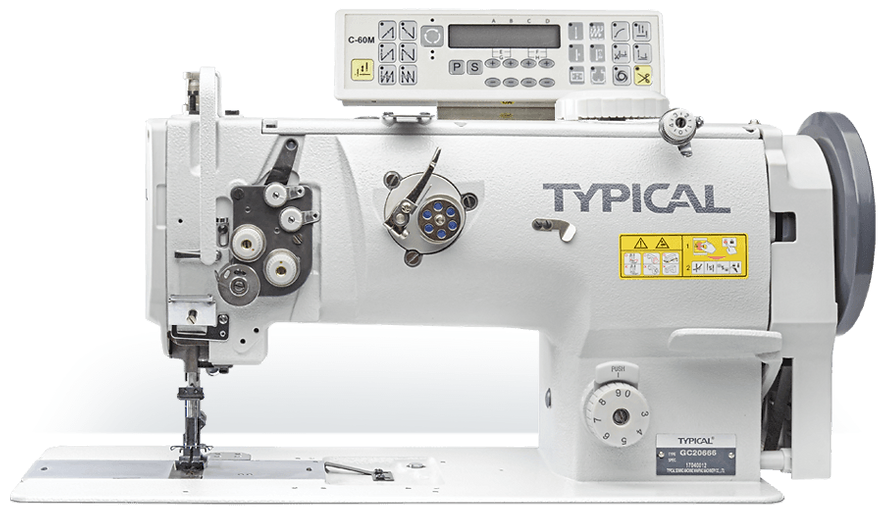

GC20665 Single Needle GC20666 Twin Needle
SEW UNIQUELY

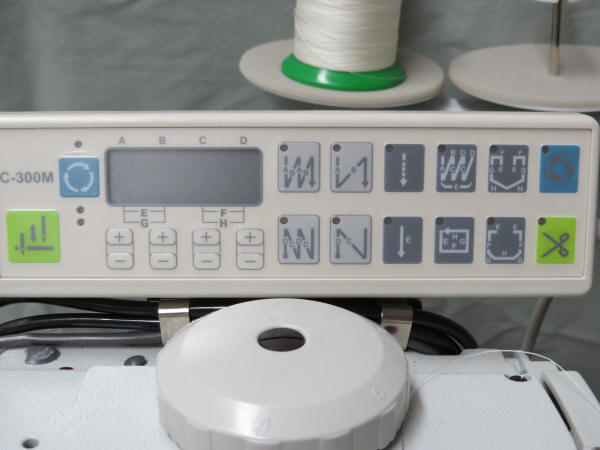

Available fully automatic GC20665-D2T3
With Ho Hsing Servo
and Electronics auto thread
trim/foot lift.
Climbing device for easy adjustment of foot climb for cross
seams
High torque Ho Hsing G60 servo motor, delivers power (600
Watts), and excellent control at low speed. Top Speed
adjustable to 2500 RPM.
Compound Feed with top load large bobbin.
Needle positioning on all models.
9mm, stitch length, with stitch length lock to
provide stable stitch length.
Built in bobbin winder, and
automatic lubrication.
Takes standard compound feed feet
SEAMS UNIQUELY
.
Prices are a guide only, and
subject to change.
Compound Feed
GC20655-D2T3 &
GC20666-D2T3 Twin Needle Fully
Auto Machine.
Climbing device for easy adjustment of foot climb for cross
seams
Built in bobbin winder
Bobbin case and large
bobbin 28X12mm
Stitch Length to 9mm
with locking device
Options
Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch feet.
Bench mounted led light. Australian made bench top.
Drop down adjustable guide.
| Model | Needles | Drive |
Foot Lift |
Thread Size |
Stitch | Stitch Length | Large Bobbin | Feeding | RPM | Work Area |
Needle Type |
Made in |
| GC20665 | 1 |
Ho Hsing Servo Belt With Needle Positioning |
16mm Knee Press |
M20 | Lockstitch | 0-9mm | Large 26X12mm |
Walking foot Compound Feed. |
2500 |
260X103 mm. |
135X17 DPX17 |
China |
| GC20666 | 2 | |||||||||||
| GC20665-D2T3 | 1 |
As Above Fully Automatic Ho Hsing |
20mm Pneumatic. |
|||||||||
| GC20666-D2T3 | 2 |
Gauge Sizes for GC20666 & GC20666-D2T3.
Gauge Sizes Inches:1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1".
| Motor | Make | Type | Needle Positioning | Volts | Output Power | HP | RPM | Made In | Price + GST |
| GC20665 | Ho Hsing | Servo | Yes | 180-284 | 600 Watts | 0.75HP | 2500 | Taiwan | Included |
| GC206666 |
| Automatic Model | Thread Trim | Back Tack 2 Start | Back Tack 2 Finish |
Back Tack 4 Start |
Back Tack 4 Finish |
Max. Tack Stitches |
Programmable |
Turn on/off Trim |
6 Bar Tack |
Reverse Switch |
Change Needle up/Down |
|
GC20665-D2T3 GC20666-D2T3 |
 |
 |
|
 |
|
 |
 |
 |
 |
 |
 |
