SEW UNIQUELY

  GC0313AD3T2 Automatic Thread Trim and Reverse, Direct Drive Extended Arm, Walking Foot, Side Load Bobbin.

GC0313CXD3T2 Same as above With 12mm Stitch Length and up to12M Thread.

GC0313ABXD3T2 Same as above With 3 X times capacity bobbin, 12mm Stitch Length and up to12M Thread.



Specifications...

Above new model with updated control panel, and 3 X times capacity bobbin.
Integrated European design concept.
Auto. reverse from control panel, hands free reverse form foot pedal, plus handy switch reverse.
7 needle bearings, smooth with less noise, and increased speed (2500 RPM.)
Led light, dimmable to suit operator needs.
Electronic thread nipper to reduce birds nest at start.
8 mm stitch length on standard model, 12 mm on CX model. All with stitch length lock to provide stable stitch length.
Full featured control panel for automatic stitches.
All thread sizes up to 20M on standard model, and 12M on CX
Built in bobbin winder, and automatic lubrication.

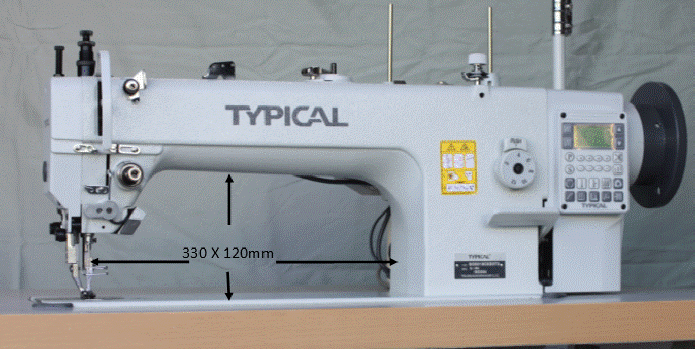

Throat size 330 mm x 120 mm. (The area to the right of the needle)
Automatic foot lift included.
Typical GC0313AD3T2 $2,900.00 + GST.
 Typical GC0313D3-CX $3,000.00 + GST.
 Typical GC0313ABXD3T2 $3,350.00 + GST.
Prices are a guide only, and subject to change.
Model  Drive Thread
Size
Stitch Stitch Length Large Bobbin Feeding RPM Foot Lift   Work Area Needle Made in  Price+GST
GC0313AD3T2 Servo
Direct
M20 Lockstitch 0-8mm Large
25X11mm
Side Load
Walking Foot 2,000 18mm  33X13cm 135x17
DPX17
China  $2,900.00
GC0313CXD3T2 M12  2-12
 mm
1,800 $3,000.00
GC0313ABXD3T2 30 X 11mm $3,350.00
Automatic Model  Thread Trim Auto Foot Left. Start & Finish Back Tack 1 to 4 Max. Tack
Stitches

Programmable

Turn on/off
Trim

4 Bar Tack
Slow Start Neat Stitch
At Start
Change Needle
up/Down
Auto
Foot
Lift
Foot
Lift
&Trim
Reverse
Switch

Motor Type Output Power Amps RPM Made In
Typical Servo 750 Watts
1 HP
0.4 2500 adjustable. China
No Hidden Costs

In Melbourne and surrounding areas. Purchase, or more details...

price includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE BUSINESS IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.


Want to know if there is a dealer in you area? Then click on the link below: -

Purchase, find a dealer, or more details...

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight by carrier could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.




ALL OTHER AREAS. Purchase, or more details...

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.

No Hidden Costs

In Melbourne and surrounding areas. Purchase, or more details...

p
rice includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE BUSINESS IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.




Intrastate: Geelong, Bendigo, Ballarat. Interstate: Sydney, Gold Coast, Adelaide, Brisbane, Perth.

Purchase, or more details...

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight by carrier could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.




ALL OTHER AREAS. Purchase, or more details...

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.

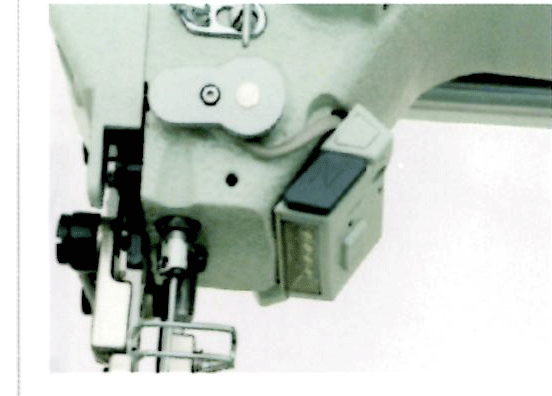

Walking Foot Typical GC0313AD3 and CX Led Light, Handy Reverse switich.

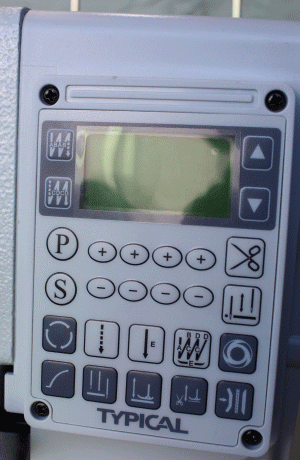

Full Featured Control Panel
Auto Lubrication
Walking foot standard feet extras available, piping, double piping, zip foot, top stitch, etc. Auto lubrication from sump

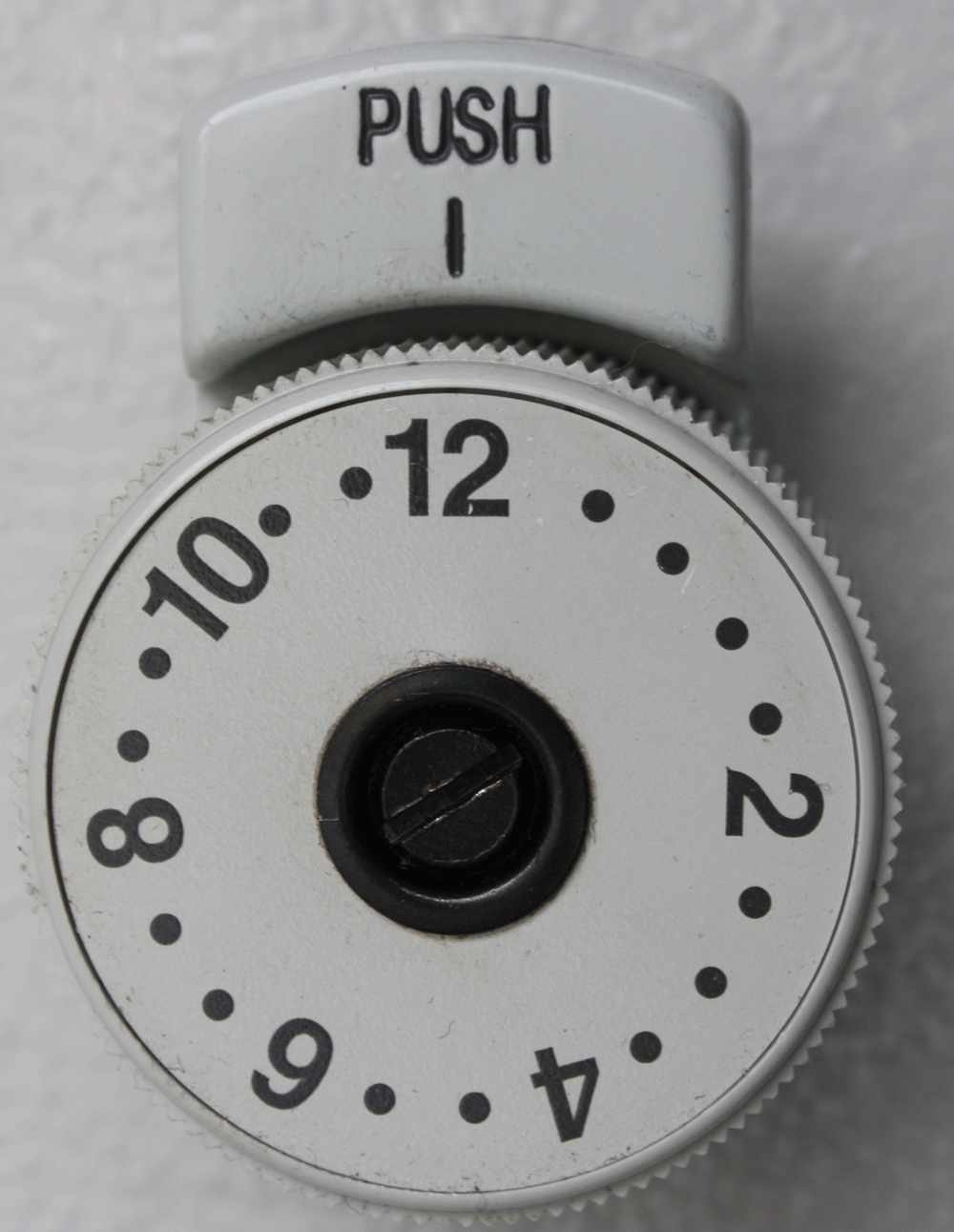

ide load bobbin, no need to remove work to change bobbin.  Stitch length to 12mm GC0303-CX 8mm GC0303 by diall
Built in bobbin winder Bobbin Case, and Large Bobbin 25 X 11mm
30X11mm Triple Size Bobbin.
Stitch Length to 12mm CX Models
