SEW UNIQUELY

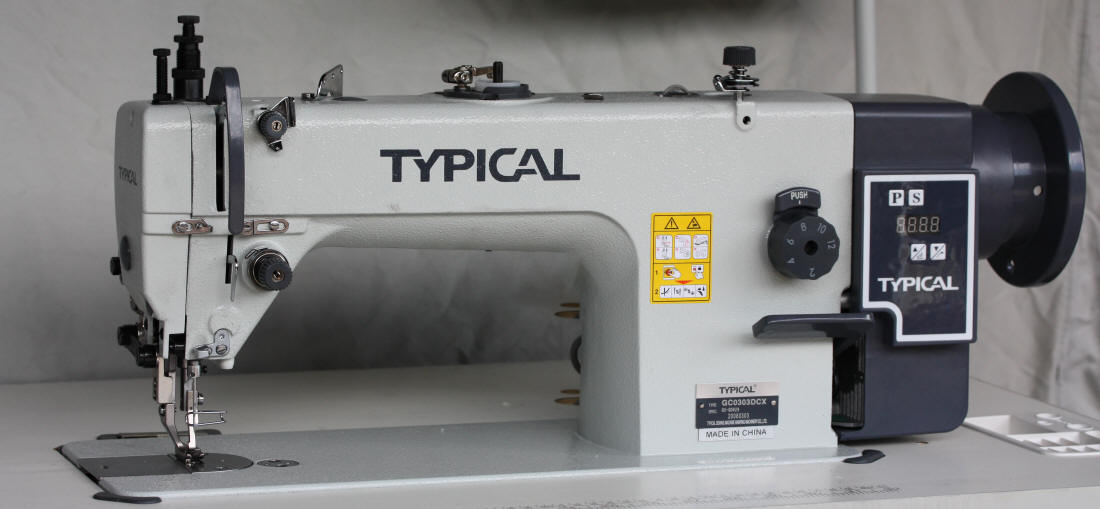

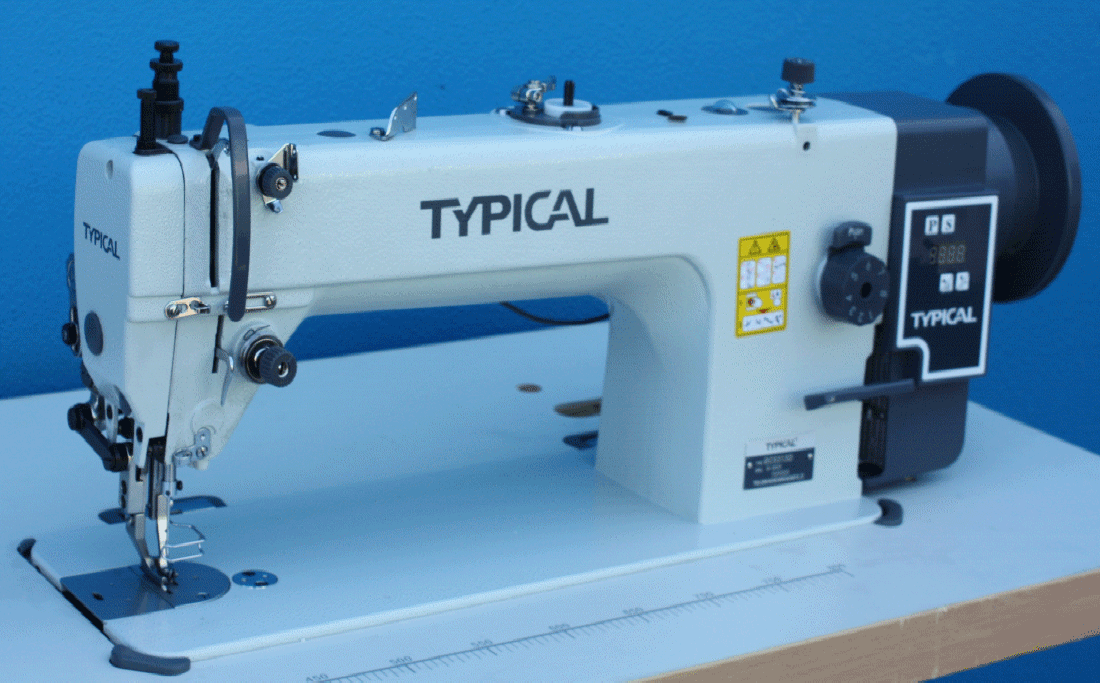

GC0303D
Direct Drive, Walking
Foot, Side Load Bobbin.
GC0303D-CX for thicker thread up to M12, and 12mm Stitch length.
SOLD OUT!
SEE THE GC0313D RANGE
EXTENDED ARM
MORE..
Complete with bench, direct drive servo motor, with needle
positioning.
Unsolicited Feed Back, reproduced with permission
“The machine is a dream to sew with and so
quiet.”
Above
with new control panel.
High torque servo direct drive motor, delivers power (750
Watts), and excellent control at low speed, top Speed
adjustable to 2000 RPM, needle positioning.
With control panel, slow start on/off, reverse needle
stop position, led display
Led light, dimmable to suit operator needs.
Needle Positioning
8mm, 12mm(CX) stitch length, with stitch length lock to
provide stable stitch length.
Built in bobbin winder, and
automatic lubrication.
We have been selling this model Typical for over 10
years, and I found it to be an excellent machine, and great
value for money.
SEAMS UNIQUELY
.
Prices are a guide only, and
subject to change.
Walking Foot
Automatic Lubrication.
Built in bobbin winder

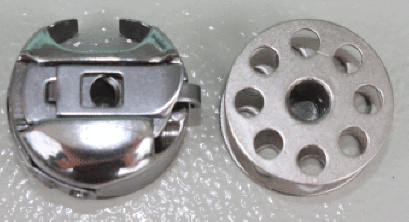

Bobbin case and large
bobbin 25X11mm.
Stitch Length to 8mm 12mm
CX
with locking device
Options
Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch feet.
Bench mounted led light. Australian made bench top.
Swing out binder, to take all sizes of shell binders.
Needle plate mounted binders all sizes.
| Model | Drive |
Thread Size |
Stitch | Stitch Length | Large Bobbin | Feeding | RPM | Foot Lift | Work Area | Needle | Made in | Complete |
| GC0303D |
Servo Direct |
M20 | Lockstitch | 0-8mm | Large 25X11mm Side Load |
Walking Foot | 2,000 | 18mm | 28X13cm | 135x17 DPX17 |
China | IN STOCK |
| GC0303D-CX | M12 |
2-12 mm |
1,800 | SOLD OUT | ||||||||
|
Juki DU-1181N |
Servo Belt |
M20 | 0-9mm | 2,000 | 15mm |
| Motor | Model | Type | Needle
Positioning |
Volts |
Output Power |
HP | RPM | Made In | Control Panel |
| Typical | GC0303D | Servo | Yes | 180-284 | 750 Watts | 1HP | 2000 | China | Yes |
| GC0303D-CX |
