SEW UNIQUELY

GC0313D Direct Drive, Walking Foot, Side Load Bobbin. $1,700.00 + GST. SAVE $400.00

GC0313D-CX for thicker thread  up to M12, and 12mm Stitch length. $1,900.00 + GST. SAVE $300.00

GC0313DBX Same as CX with Triple size Bobbin. $2,000.00 + GST. SAVE SAVE $400.00

All prices are a guide only and subject to change.

Triple Size Bobbin 30 X 11mm GC0313DBX

Complete with bench, direct drive servo motor, with needle positioning & Panel.

Unsolicited Feed Back, reproduced with permission.

Dayle from the Gold Coast had this to say "It looks good, it feel good, it is good." 29/01/2020.

Specifications...



NEW MODEL WITH TRIPLE SIZE BOBBIN NOW IN STOCK.

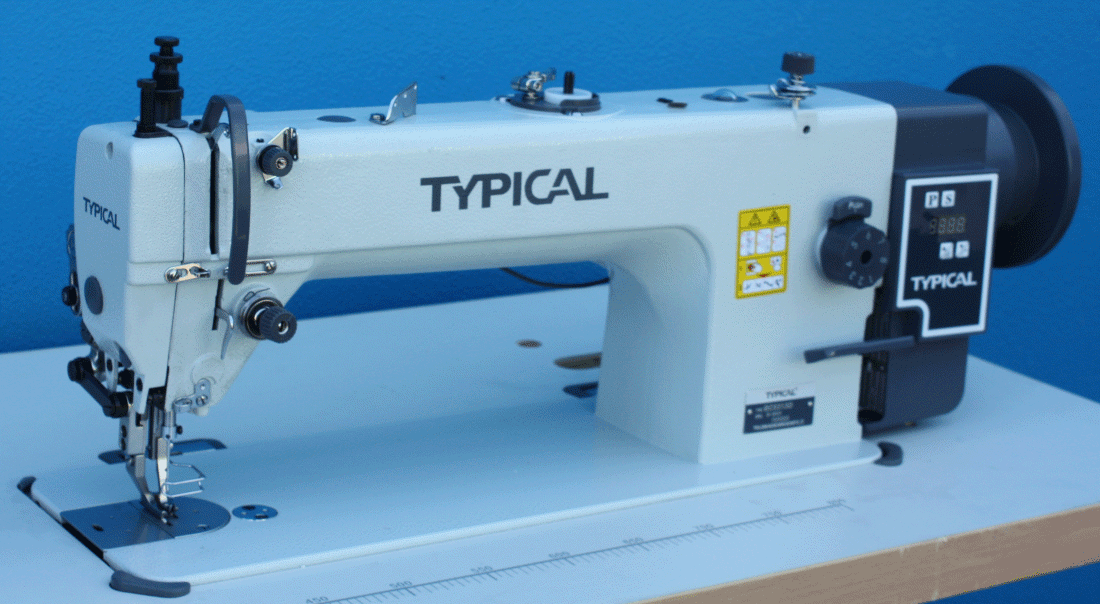

Above GC0313D Model with control panel.
High torque servo direct drive motor, delivers power (750 Watts), and excellent control at low speed, top Speed adjustable to 2000 RPM, needle positioning.
 With control panel, slow start on/off, reverse needle stop position, led display
 Led light, dimmable to suit operator needs.
Needle Positioning.
8mm, 12mm(CX) stitch length, with stitch length lock to provide stable stitch length.
Built in bobbin winder, and automatic lubrication.
We have been selling this model Typical for over eight years, and I found it to be an excellent machine, and great value for money.
SEAMS UNIQUELY   .
Typical GC0313D $1,700.00 + GST. Save $400.00
Typical GC0313D-CX $1,900,00 + GST. SAVE $200.00
Typical GC0313DBX $2,000,00 + GST. SAVE $400.00
Prices are a guide only, and subject to change.
No Hidden Costs

In Melbourne and surrounding areas. Purchase, or more details...

price includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE BUSINESS IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.


Want to know if there is a dealer in you area? Then click on the link below: -

Purchase, find a dealer, or more details...

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight by carrier could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.




ALL OTHER AREAS. Purchase, or more details...

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.

Options

Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch foot.

Bench mounted led light. Australian made bench top.

Swing out binder, to take all sizes of shell binders.

Model  Drive Thread
Size
Stitch Stitch Length Large Bobbin Feeding RPM Foot Lift   Work Area Needle Made in  Price+GST
GC0313D Servo
Direct
M20 Lockstitch 0-8mm Large
25X11mm
Side Load
Walking Foot.
Top and bottom Feed.
2,000 18mm.
Knee Press.
330X120mm 135x17
DPX17
China  $1,700.00
GC0313D-CX  M12  2-12
 mm
1,800 $1,900.00
GC0313DBX Triple Size 30X11mm $2,000.00
Motor Model Type Needle
Positioning
Volts Output
Power
HP RPM Made In Control
Panel
Typical All Models Servo Yes 180-284 750 Watts 1HP 2000 China Yes
