SEW UNIQUELY

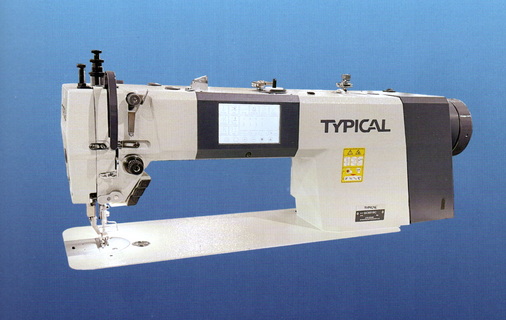

GC0316C Fully Automatic, Direct Drive, Walking Foot, Extended Arm, Side Load Bobbin.

Complete with bench, direct drive servo motor, with needle positioning.

HOW to PURCHASE...



specifications...

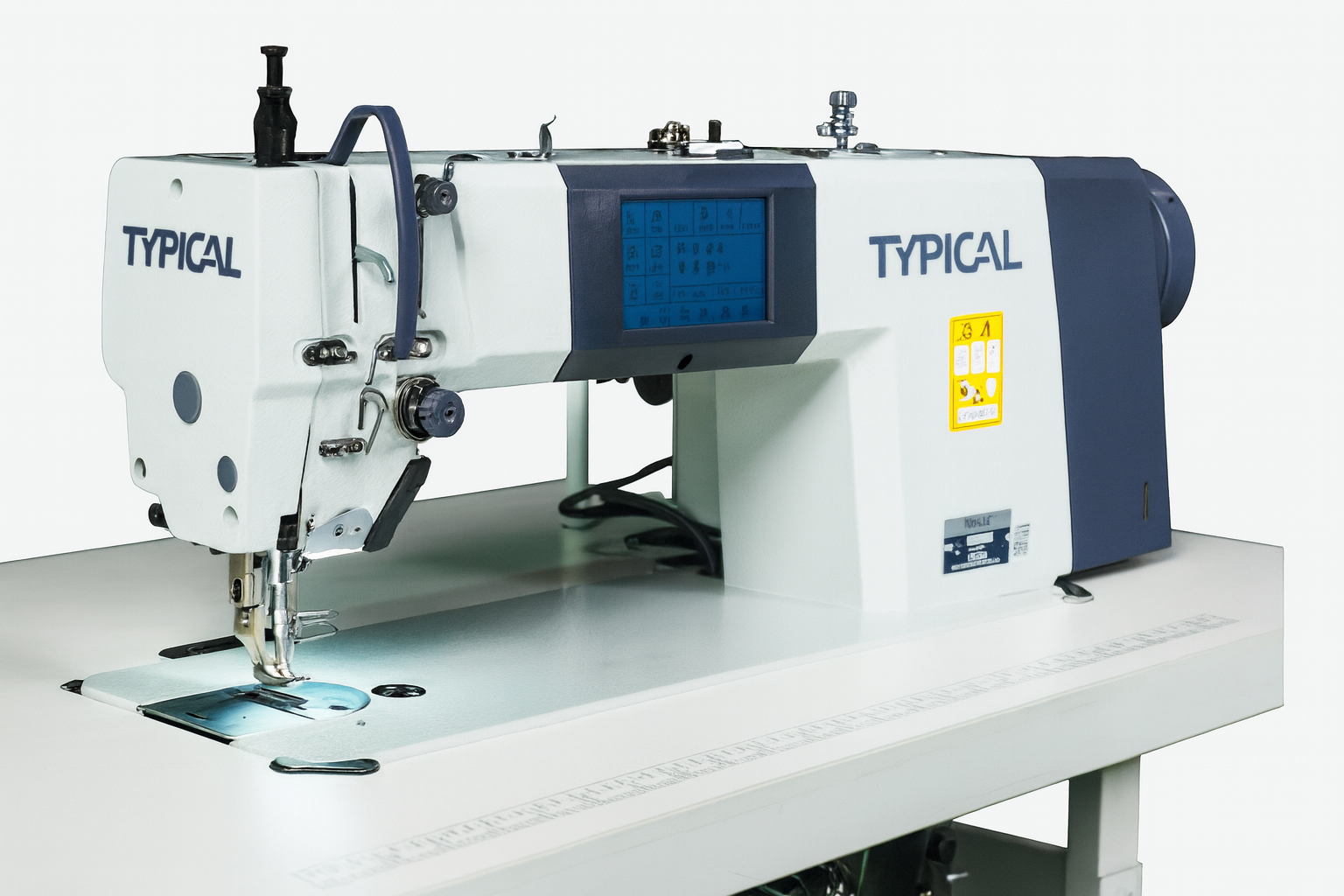

Above GC0316C Fully Automatic model with control panel.
High torque servo direct drive motor, delivers power (750 Watts), and excellent control at low speed, top Speed adjustable to 2500 RPM, needle positioning.
With: Extended Arm, Thread Trim, Auto solenoid foot lift, control panel, slow start on/off, reverse needle stop position, led display
Led light, dimmable to suit operator needs.
Needle Positioning.
0-9mm stitch length, by step servo motor, adjustable from control panel, soft touch reverse from button close to operator.
Built in bobbin winder, and automatic lubrication.
This is a new model from TYPICAL with feature for the future.
SEAMS UNIQUELY   .

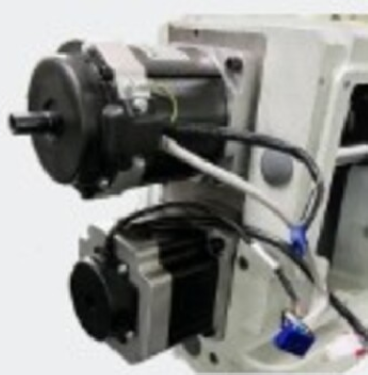

The direct drive servo motor.

The stepping servo motor.

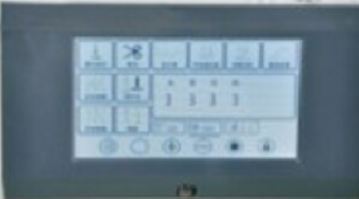

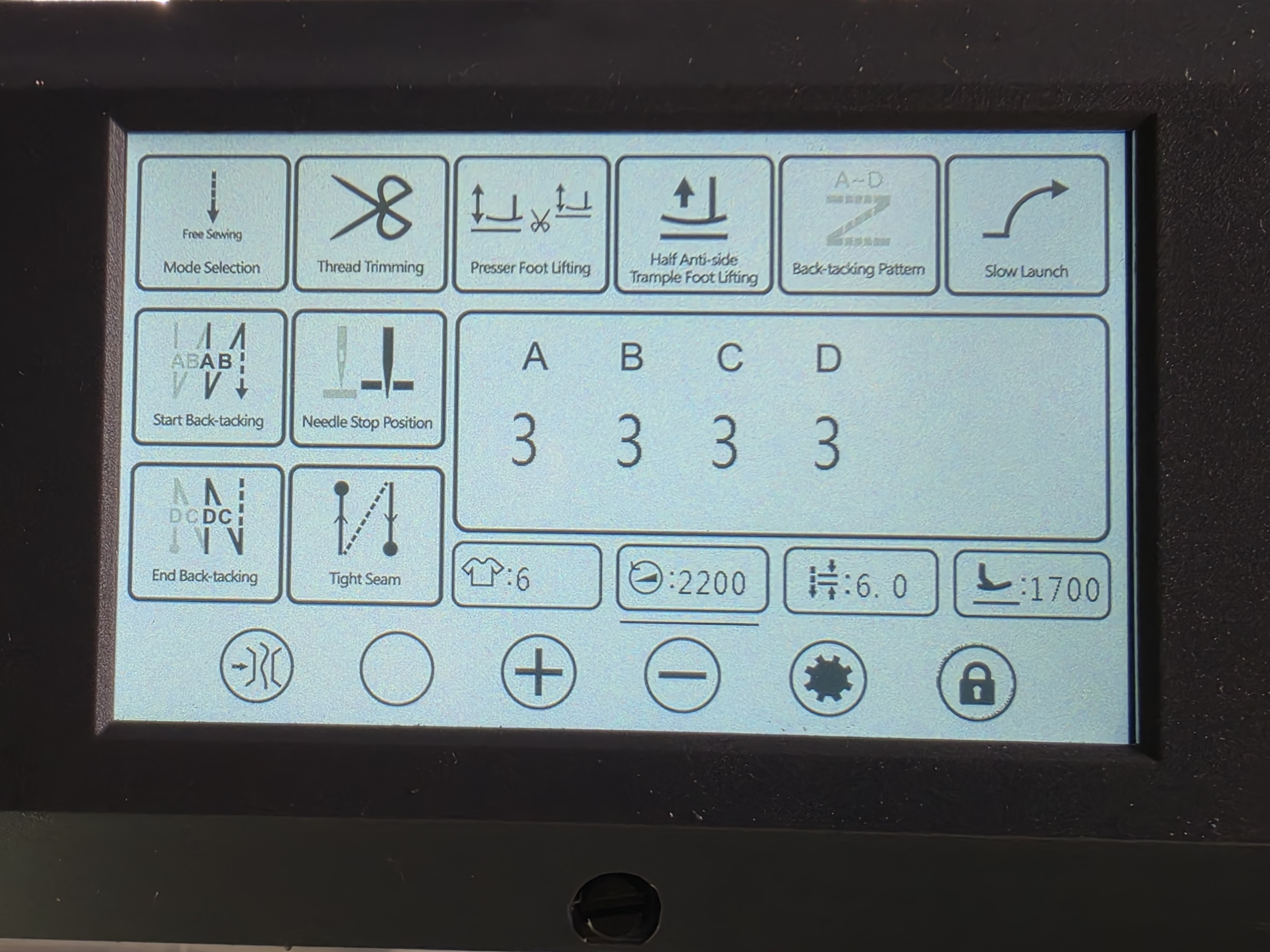

The stitch length is now set via the touch screen panel, and reverse stitching is activated by a conveniently located button.
Stitch control is managed by a servo step motor, ensuring the reverse stitch matches the forward stitch in length.
Automatic backstitching can be performed at the start and end of a seam, and the reverse function can also be programmed to create decorative stitches.
Multi-functional keys for convenient switching.

Options

Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch feet.

Bench mounted led light. Australian made bench top.

Swing out binder, to take all sizes of shell binders.

Needle plate binders all sizes available.

HOW to PURCHASE...

Specifications

Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area Needle Built
in light		 Made In Price + GST
GC0316C  Medium-Heavy  Lockstitch. 0-9mm  Large
 25X11mm		 Walking Foot. 2500  15mm Knee Press
12mm Auto.		 330mmX 120mm    135X17 DPX17  Led. China   $2,700.00
Automatic Model  Thread Trim Auto Foot Left. Start & Finish Back Tack 1 to 4 Max. Tack
Stitches

Programmable

Turn on/off
Trim
4 Bar Tack
 Slow Start Neat Stitch
At Start		 Change Needle
up/Down		 Auto
Foot
Lift		 Foot
Lift
&Trim		 Reverse
Switch
GC0316C
