SEW UNIQUELY

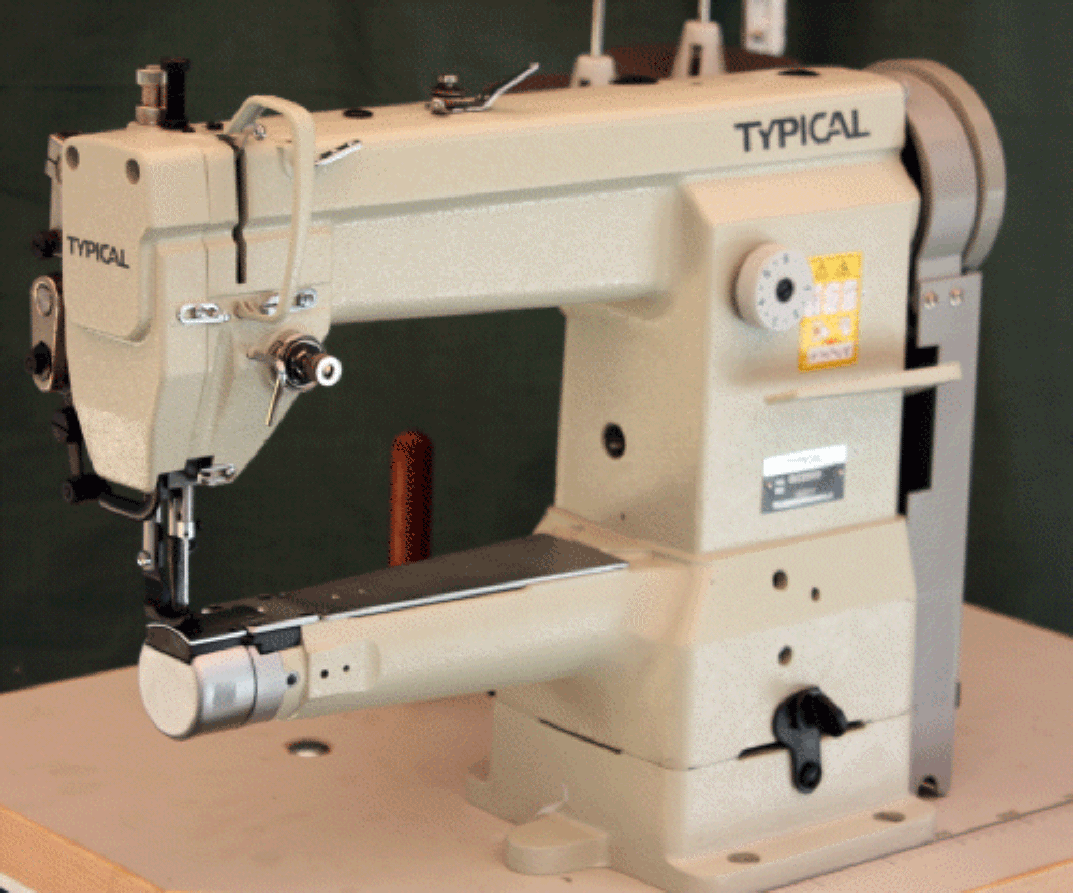

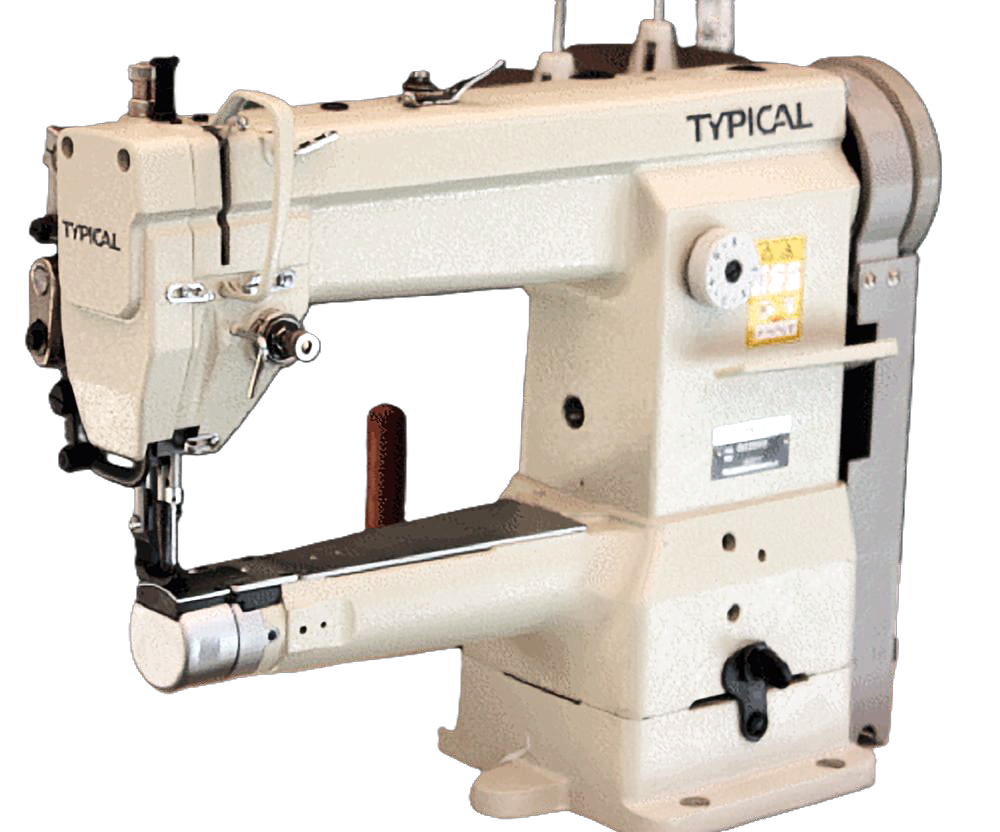

GC2603 Cylinder arm, Walking Foot Compound Feed, Side Load Bobbin.
Ideally priced machine for artisan or hobbyist. | ||||||||||||
High torque Ho Hsing G60 servo motor, delivers power (600 Watts), and excellent control at low speed, top speed (1800 RPM.) | ||||||||||||
Manual lubrication. | ||||||||||||
Led light. | ||||||||||||
6 mm stitch length. | ||||||||||||
Side load large bobbin. | ||||||||||||
Throat size 260 mm x 120 mm. (The area to the right of the needle) | ||||||||||||
Available GC2603 Standard or GC2605 Synchronised binder. | ||||||||||||
See Typical Cylinder arm top load bobbin... See TYPICAL Cylinder arm extra heavy... | ||||||||||||
SEAMS UNIQUELY . | ||||||||||||
Prices are a guide only, and subject to change. | ||||||||||||
|
Model |
Thread Size |
Stitch | Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Work Area |
Arm Dia. |
Needle | Made In |
GC2063. GC2065 Sync Binder |
M20 | Lockstitch | 0-8 mm | Large 25X11mm | Compound | 2500 | 16 mm Knee Press |
255X110 mm | 72m | 135X17 | China |
Motor | Type | Output Power | Amps | Top RPM | Made In | Price + GST |
CAMSEW | Servo with positioning. |
750 Watts 1 HP |
0.4 | 2500 Adjustable | China | Included |
