Heavy Duty Adjustable Table With Castors.
Ho Hsing G60 Servo Motor, and Speed Reducer.
GA-205 Short Cylinder Arm Extra Heavy Duty Compound Feed.

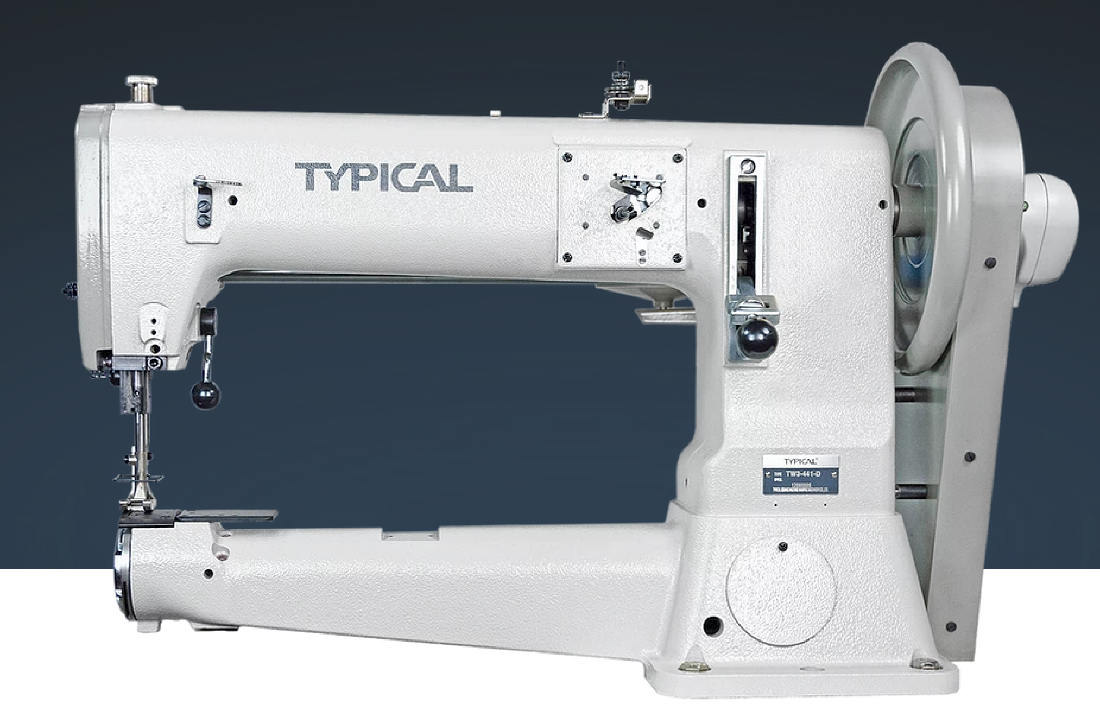

			 TYPICAL TW3-441 Extra Heavy Duty
					Cylinder Arm Compound Feed. used for: - Saddles, Upholstery, Bags, Car Trim,
					Tents. 420×200mm
























					Extra Heavy Duty Pedestal Stand With Castors.



					Ho Hsing G60 high torque servo direct drive motor, delivers power (600
					Watts), and excellent control at low speed, top Speed
					adjustable to 800 RPM.



					With speed reducer, which give
					excellent control at very low speed.






					Led light.



					Excellent for very heavy leather.



					5.5–8.5 mm top feed lift allows easy sewing even at
					cross-seams.



					11mm max stitch length, with stitch length lock to
					provide stable stitch length.



					Cylinder arm diameter 81mm.




					Built in bobbin winder.










					Prices are a guide only, and
					subject to change.









							Walking Foot Compound feed



							GA-205
							Large Shuttle


















					Model
					Stitch

					Thread Size
					Stitch
					Length

					Shuttle

					Shuttle Winder
					Feeding
					RPM
					Foot
					Lift
					Work
					Area

					Drive

					Servo Motor
					Needle
					Made In



					TW3-441

					Lockstitch



					Up To 8M
					0-11 mm

					Large 25X23mm

					Built in

					Compound Feed
					800

					25 mm Foot Pedal



					Servo & Reducer via belts.

					Ho- Hsing Taiwan G60

					More...
					DY×3
					China



					GA-205

					From Belt

					220X200mm

					Servo/Reducer option via belts.
