   GC2263-1B Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Auto lube.

GC2263 Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Climbing Device, Auto lube.

GC2263L14-D3T4 Same as above 14 Inch arm FULLY AUTOMATIC...
Specifications...

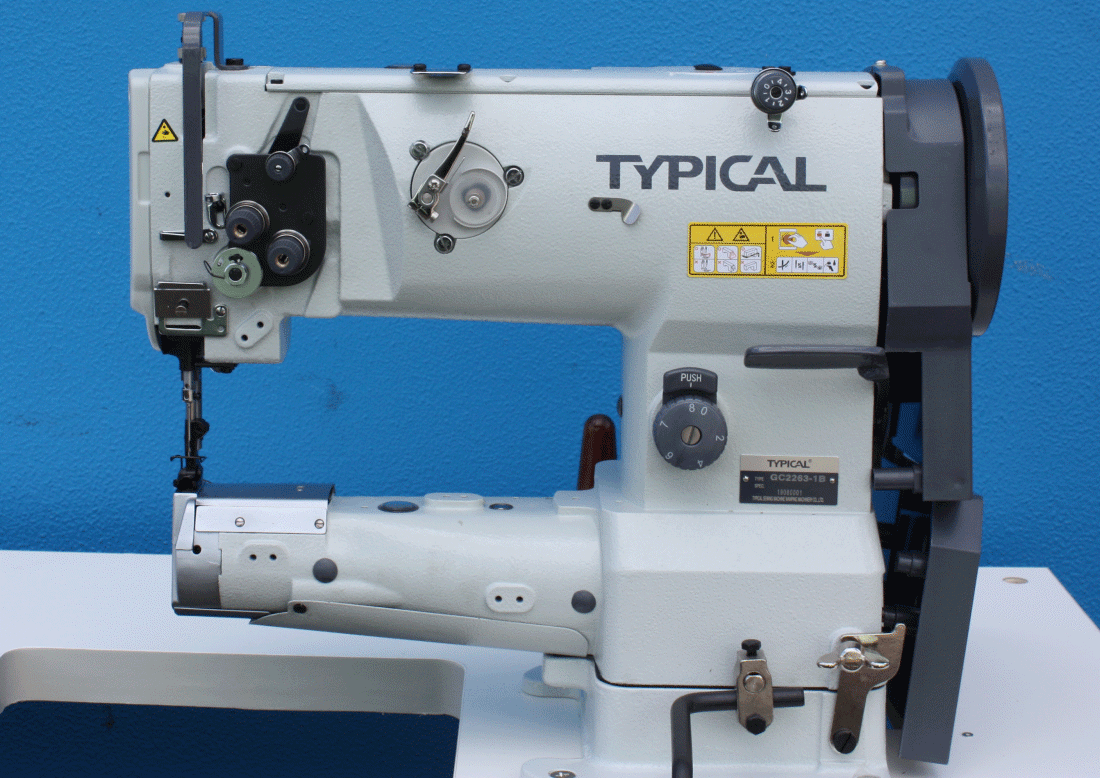

GC2263-1B Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Auto lube.

GC2263D Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Climbing Device, Auto lube. GC2263DV Synchronised binder.
Integrated European design concept.
High torque Typical WR561-2 servo motor, delivers power (750 Watts), top speed (2500 RPM.)
Automatic lubrication enables high-speed 2500 rpm
Led light.
8mm stitch length, with stitch length lock to provide stable stitch length.
New designed stitching mechanism which gives reliable feeding.
Built in bobbin winder, and automatic lubrication.
Throat size 255 mm x 110 mm. (The area to the right of the needle)
Available with auto thread trim, et cetera, and 2 needles.

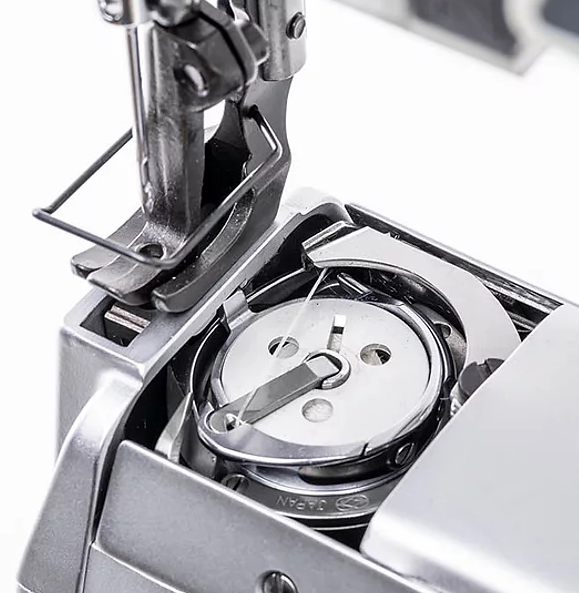

Japanese hook and base (Stitching mechanism)
SEAMS UNIQUELY   .

HOW to PURCHASE...
Prices are a guide only, and subject to change.

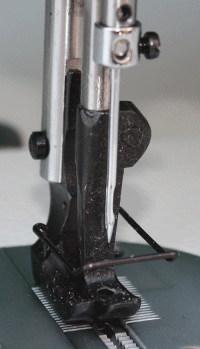

Walking Foot
Compound Feed
Standard Feet
Large top load bobbin 26X11mm.

Climbing Device.
 increase or decrease the foot lift for cross seems.

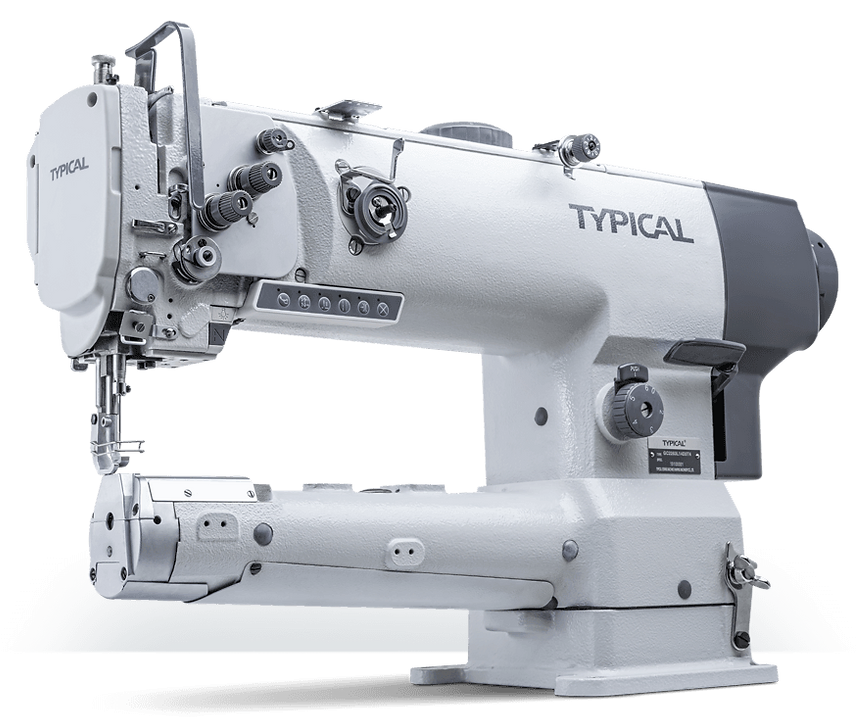

Built in bobbin winder TYPICAL GC2263L14-D3T4 AUTOMATIC 14 Inch 35.56cm Long Arm Stitch Length to 8mm
Walking Foot
Compound Feed		 TYPICAL GC2263L14-D3T4 AUTOMATIC

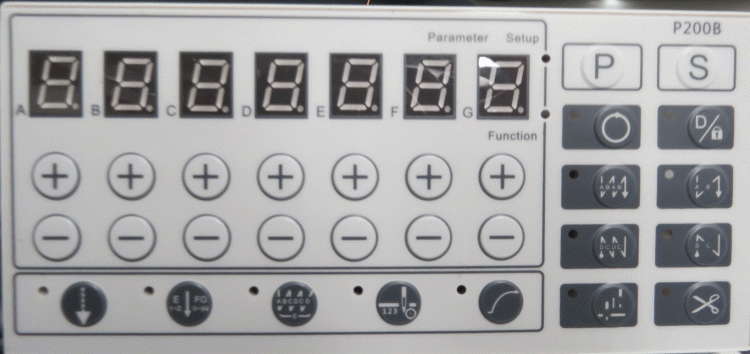

Full Featured Control Panel.		 Easy to Adjust Climbing Device

 Quick and Easy bobbin winder with thread trim.

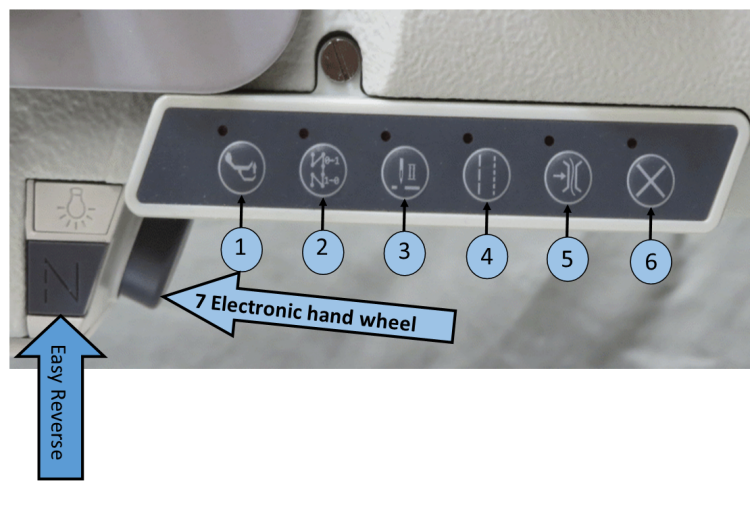

1: When switched on you can increase or decrease the foot lift for cross seams. via the knee press..

2: Auto back tack select.

3: Half stitch switch, can be used when you want to make one stitch.

4: Increases the motor force.

5: Second tension release.

6: Safety switch.

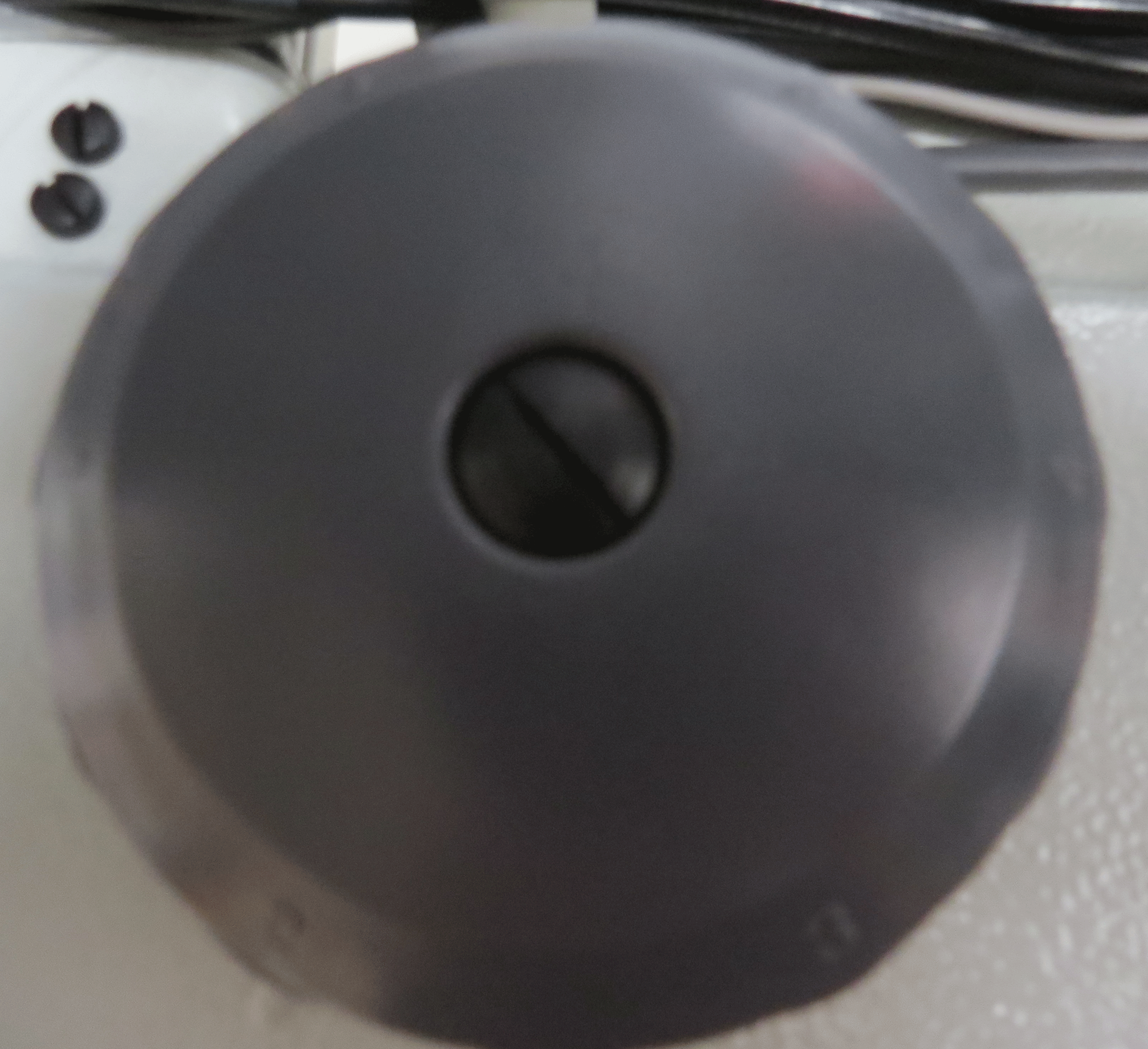

7: Electronic hand wheel. Use for Precise manual needle positioning.

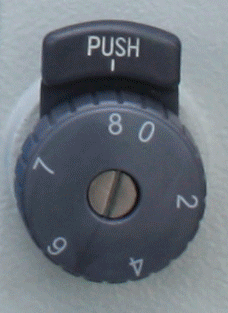

Built in bobbin winder Ideally positioned sub panel for frequent stitch settings Stitch Length to 8mm
with locking device
Model  Needles Type Cyl. Arm Feed Type Thread
Size 		 Stitch Stitch Length Bobbin Winder RPM Foot Lift Work Area Made In
GC2263-L14 D3T4 Single
DPX17
135X17		 Fully Auto. 14 inch 35.56cm Walking Foot
Compound Feed		 Up to M20  Lockstitch  0-8 mm  Large 28X11mm  Built In 2500  25 mm Auto Pneumatic. 365 X110 mm   China
GC2263-1B Non Auto. Std. 16 mm Knee Press
 260X110mm
GC2263D 26X11mm
GC2263V
Automatic Model  Thread Trim Auto Foot Lift Back Tack 2 Start/Finish Back Tack 4
Start/Finish		 Lock
Settings		 Max. Tack
Stitches

Programmable

Turn on/off
Trim
6 Bar Tack
 Reverse
Switch		 Change Needle
up/Down
GC2263-1B-D2T3
