        Australia's only authorised dealer for Typical Sewing Machines.







  Est: 1968.Est


              catalogue for this machine                  download Adobe reader



Typical industrial sewing machines

GC06930-MD3 Direct Drive, Inbuilt Digital Control Panel, Auto Thread Trim, Auto Foot Lift, and Micro Lube Sealed Oil Sump.

All for $2,500.00 Plus GST.

Specifications...

Above Typical GC6930-MD3 New Age Fully Automatic.
Automatic Thread Trim, With Full Featured Control Digital Panel and Display.
Automatic Foot Lift.
Micro Lube Sealed Oil Sump.
Digital Feed System, Set  by Operator.
Set Stitch Length From Control Panel.
Sensor for the measurement of the material thickness with dynamic adjustment of the stitch length and the presser foot pressure for a guaranteed consistent stitch length at varying material thickness.
Led light, dimmable to suit operator needs.
Built-in Bobbin Winder.
Thread Nipper for Clean Stitch at Start.

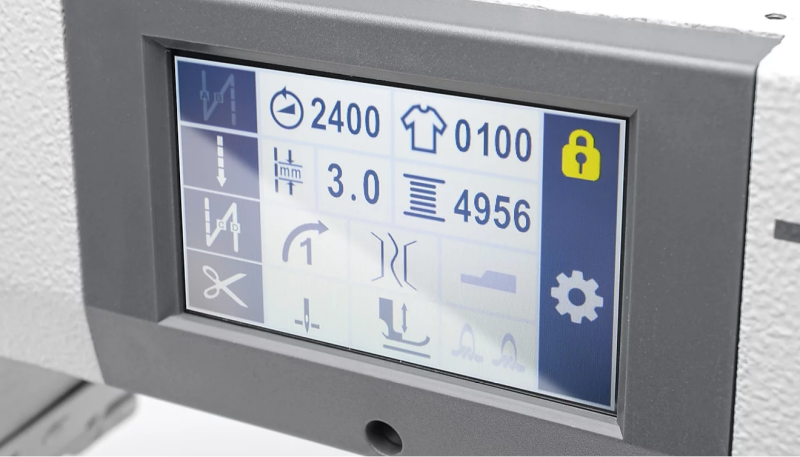

NEW Simple to use control panel, touch pad control.
USB port for upload and download of sewing programs, as well as software updates





Set: type of stitch, stitch length (No stitch Dial), with "Digital Feed System"
Set: Time saving, easy on the operator; operations.
 Program: Change bobbin warning, and garment count.
Copy: Setting to USB device, and Android Phone.
Enter: Advanced mode to configure for your type of work.
Program: Impressive stitches for top stitch using stitch length, and reverse stitch, with "Digital Feed System"

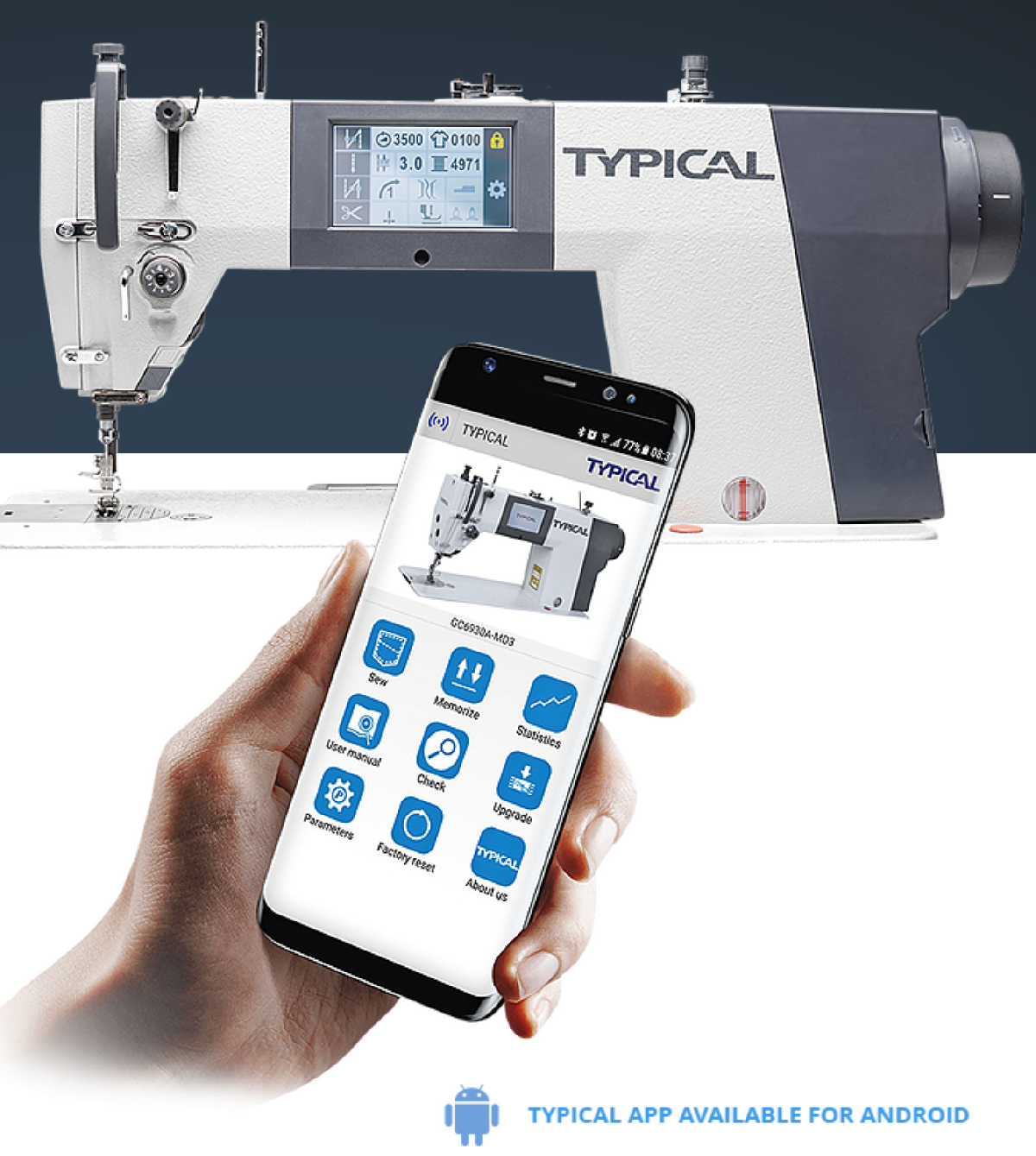

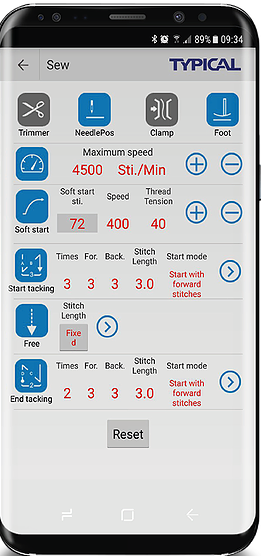

The TYPICAL App. for Android devices connects your device with the sewing machine via Bluetooth.
It Facilitates easier adjustment of sewing parameters or the access to performance data.
Fast access to parts list, instruction and service manuals.


Typical Latest model

New Enclosed Micro Lube Sealed Sump.

For over 50 years Japanese machines have been lubricated from an open oil sump, that is, the machine sat on top of the oil sump, but it was not sealed. This lubricated the machine very efficiently, Increasing top speeds with less noise, increasing the overall life of the machine.

This was fine when the occasional oil stain was not a huge problem, but for dressmakers, and particularly wedding dresses the occasional oil stain was a disaster. Now with the enclosed gear box, there is no oil to get out.






Adjustable 2 X led Lights.  Thread Nipper. Back Tack Switch. 5mm Stitch Length Set From Touch Pad  Built in bobbin winder. Built-in Auto Foot Lift.
Adjust brightness to suit. No more birds nest at the start. Easy back tack within reach. Stitch stays where you set it. On top of the machine where it can
be seen. With handy knife to trim  bobbin thread.

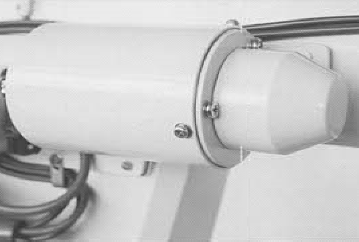

Foot can be set to lift on heel back, and auto on finish



No Hidden Costs

In Melbourne and surrounding areas

p
rice includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE BUSINESS IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.

In Sydney, Gold Coast, Adelaide, Brisbane, Perth.

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight by TNT could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.



Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
Needle Built
in light
Made In
GC6930-MD3  Light-Medium  Lockstitch   0-4 mm  Standard. Digital 5000  6/13 mm Knee Press + Auto.   300 mm X 136mm    520X180cm  134
DPX5
2XLed. China

Automatic Model  Stable Stitch
at Cross Seam
Digital Feed Control Touch Pad
Panel
Needle Breakage Prevention No Birds Nest

USB Port

Android Phone



Operator Created Stitches   Lock Your
Settings
Exclusive Features
Automatic Model  Thread Trim Back Tack
1 to 4 Start/Finish
Slow Start
Set Stitch Length from Touch Pad Max. Tack
Stitches

Program

Turn on/off
Trim

4 Bar Tack
Reverse
Switch
Change Needle
Stop up/Down
GC6930-MD3

Motor Type Output Power Amps RPM Made In
Typical Direct Drive Servo, Synchroniser, and top Speed adjustment. 550 Watts
0.6 HP
0.3 Top Speed Adjustable China
