TW7-21-5 Zigzag Walking Foot, Front Load Bobbin.

Specifications...

Typical zigzag walking foot industrial sewing machine Designed for heavy Work.

Front load bobbin no need to remove work to change

Semi Auto lubrication

Stitch Width to 12mm

Designed to do a days work everyday.

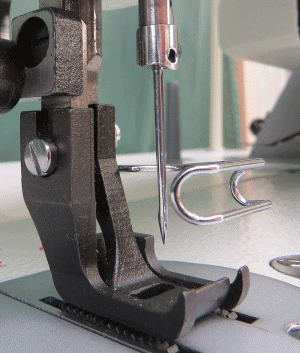

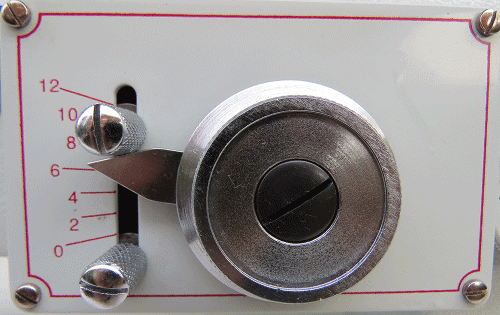

Walking Foot Typical TW7-21-5 Walking Foot Zigzag Zigzag to 12mm

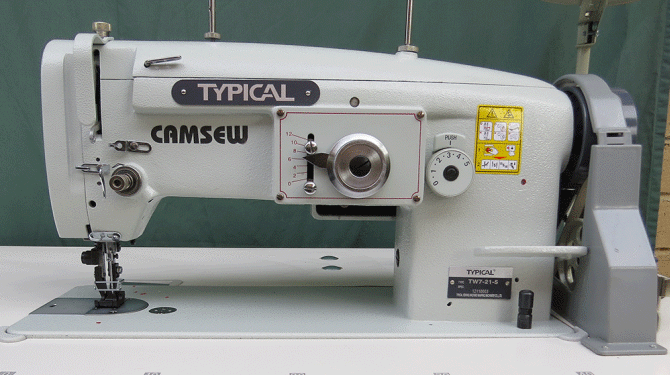

Typical zigzag walking foot industrial sewing machine

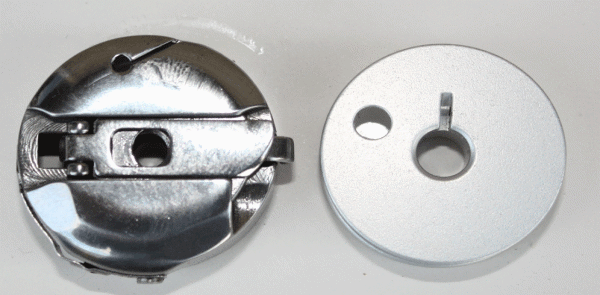

  Bobbin Case and Large Bobbin 9 X 28 mm, larger than walking foot plain machine large bobbins.

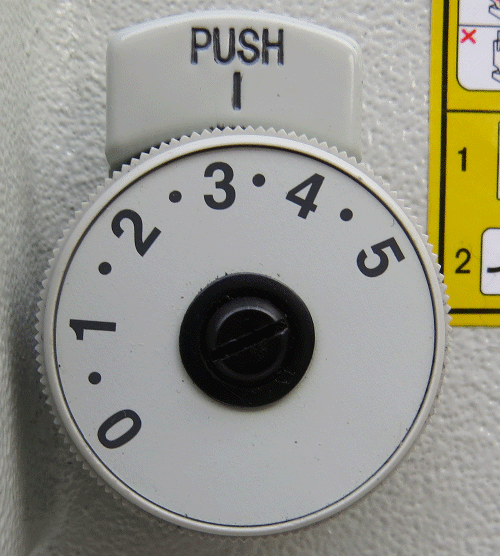

  Bobbin Case, and Large Bobbin 9 X 28mm  Stitch Length to 5mm

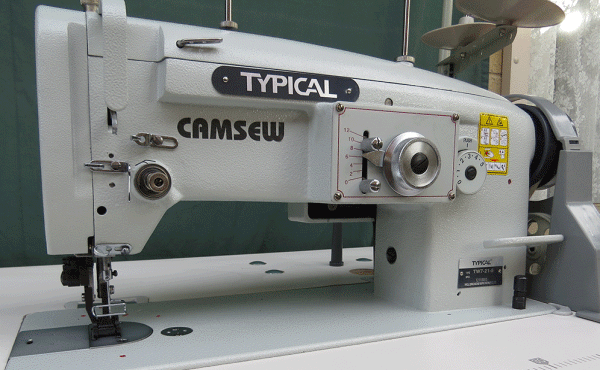

Typical zigzag walking foot industrial sewing machine
Typical TW7-21-5 Walking Foot Zigzag $2,500.00 + GST
 Price includes delivery, set up, 12 months on site warranty.

(Melbourne Metropolitan Area)

All other areas a $100 discount towards freight.

 12 months return to point of purchase for warranty claims.

Price is a guide only, and is subject to change without notice.


Stitch Stitch Width Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
 Needle Made In
Lockstitch
Zigzag		 12mm 0-5
 mm		 Large 28X9mm Walking Foot 1800 12 mm Knee Press

260 X 115mm

 52 X 18
cm		 135X17
DPx17		 China

Motor Model Type Volts Output Power HP RPM Made In Price + GST
 ISM NS-164 Clutch 220-240 600 Watts 0.75HP 1400 China Included
Ho Hsing   Clutch 180-284 550 Watts 0.74HP 5000 China plus $35.00
PowerMax ASU27-75 Servo 180-284 750 Watts 1.0HP 3000 China Included
Ho Hsing MJ Servo 200-240 600 Watts 0.8HP 3000 Taiwan plus $120.00
