  TW1-1591E-M

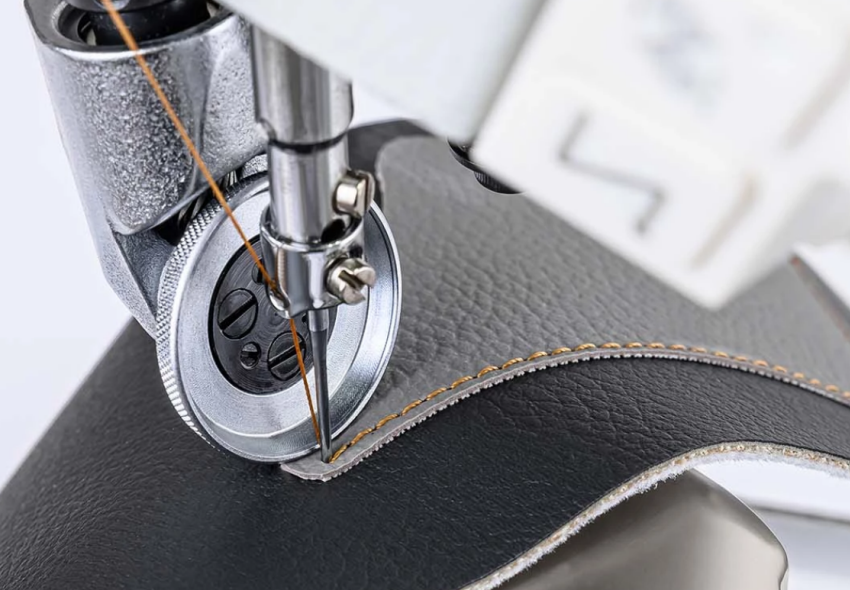

Full electronic post-bed sewing machine, with wheel feed, driven roller presser and needle feed, direct drive.

> 5-inch high-resolution color screen for easy and fast operation.
> Electronic knee switch for example: stitch length change, reverse stitch, presser foot lift.
> Direct drive on the arm shaft ensures better power transmission and higher puncture force.

 > Guaranteed stitch-in-stitch by back tack.

> Additional electrical back switch in handy position.

> Wheel feed, driven roller presser and needle feed are controlled by stepper motors.

> Stitch lengths are reproducible at any time.
> Programmable differential feed(+/- 1.0 mm) for top and bottom feed.

> High seam quality for functional and decorative seams.

> Easy adjustment of stitch lengths and back tack stitch on the control panel.

> Multifunction button in easy reach of the operator.

> Integrated LED sewing light with 3 lighting levels and colour change for fluorescent markings.

> Easily adjustable thread trimmer.

> Overload clutch for hook protection.

> Programs can be transferred to the machines via USB.

> No compressed air required.

Designed in Germany.

By Ex. Pfaff designers and technicians.

The new future for industrial sewing machines.

 Made in China.

Suitable for: -

Bags, Wallets, Gloves, Classic Shoes, Sports Shoes, Women Shoes and Boots.




Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Drive		 Needle Built
in light		 Made In
TW1-1591 E-M Light-Medium  Lockstitch   0-5 mm  22mm
Top Load		 Twin Roller
Needle Feed		 3000  6/13 mm Knee Press   245 mm X 275 mm    Direct Servo  134 PCL Led.
Colour
Change		 China
Automatic Model  Thread Trim Back Tack
1 to 4 Start/Finish		 Slow Start
  Touch Pad Max. Tack
Stitches

Program

 Turn on/off
Trim
4 Bar Tack
 Reverse
Switch		 Change Needle
Stop up/Down
TW1-1591 E-M
