Typical industrial sewing machines

GC06730-MD3 Direct Drive, Auto Thread Trim, and Micro Lube Sealed Oil Sump.

All for $1,100.00 Plus GST. One Only at This Price. New but Shop Soiled.

Specifications...

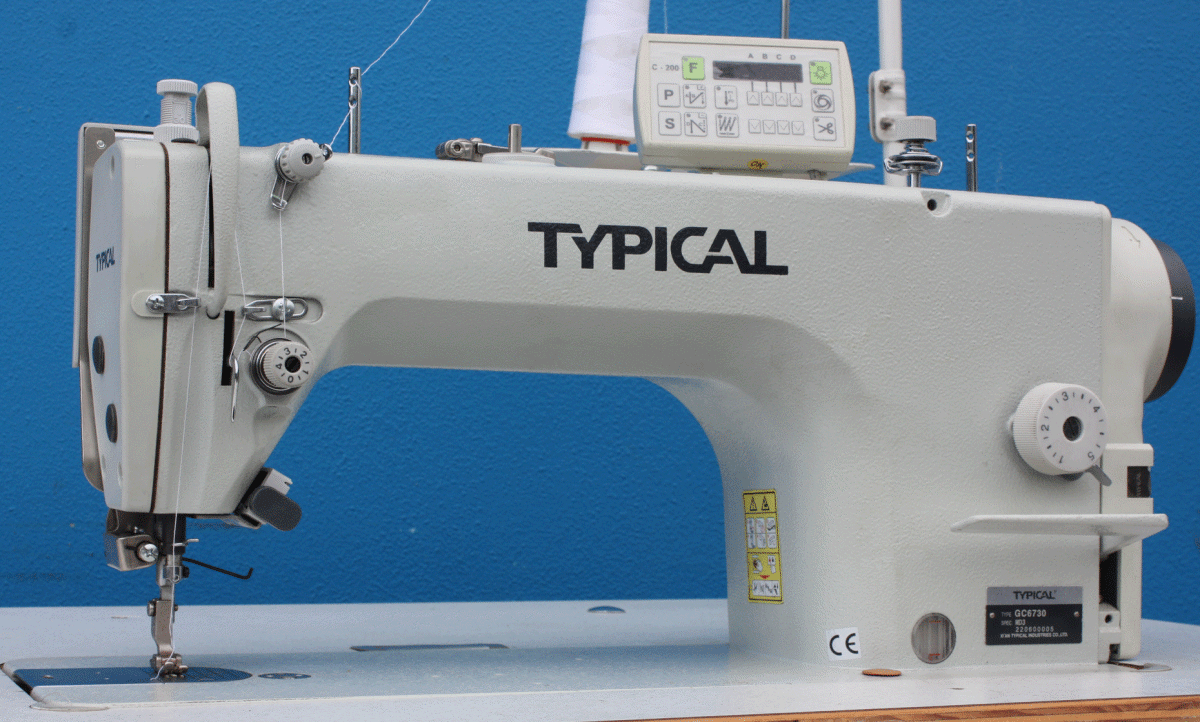

Above Typical GC6730-MD3 Fully Automatic.
This Machine as Become Shop Soiled and as Been Reduced From $2,000.00 to $1,100.00 Plus GST.
Automatic Thread Trim, With Full Featured Control Panel and Display.
Automatic Foot Lift, Option.
Micro Lube Sealed Oil Sump.
Electronics by Ho Hsing.
Set Stitch Length Lock.
Complete With Led light.
Built-in Bobbin Winder.


Price includes delivery, set up, 12 months on site warranty
(Melbourne Metropolitan Area)

All other areas a $100.00 discount towards freight.

 12 months return to point of purchase for warranty claims.



Typical Latest model

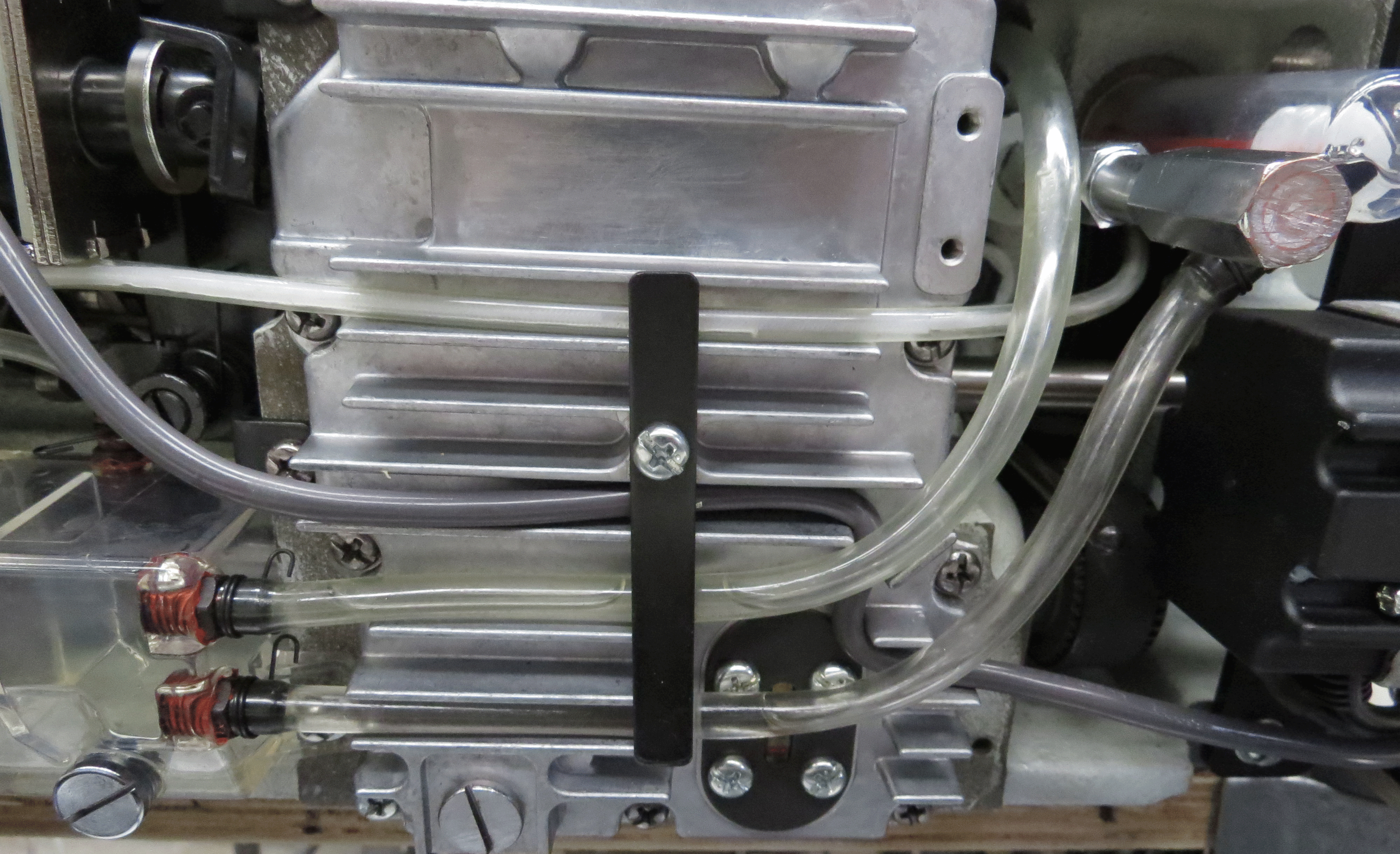

New Enclosed Micro Lube Sealed Sump.

For over 50 years Japanese machines have been lubricated from an open oil sump, that is, the machine sat on top of the oil sump, but it was not sealed. This lubricated the machine very efficiently, Increasing top speeds with less noise, increasing the overall life of the machine.

This was fine when the occasional oil stain was not a huge problem, but for dressmakers, and particularly wedding dresses the occasional oil stain was a disaster. Now with the enclosed gear box, there is no oil to get out.





Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
Needle Led light Made In
GC6730-MD3  Light-Medium  Lockstitch   0-5 mm  Standard. Drop Feed 4000  6/13 mm Knee Press   295 mm X 140mm    520X180cm  16X231 DBX1  Magnetic China


Motor Type Output Power Amps RPM Made In
Ho Hsing Direct Drive Servo, Synchroniser, and top Speed adjustment. 550 Watts
0.6 HP
0.3 Top Speed Adjustable China
