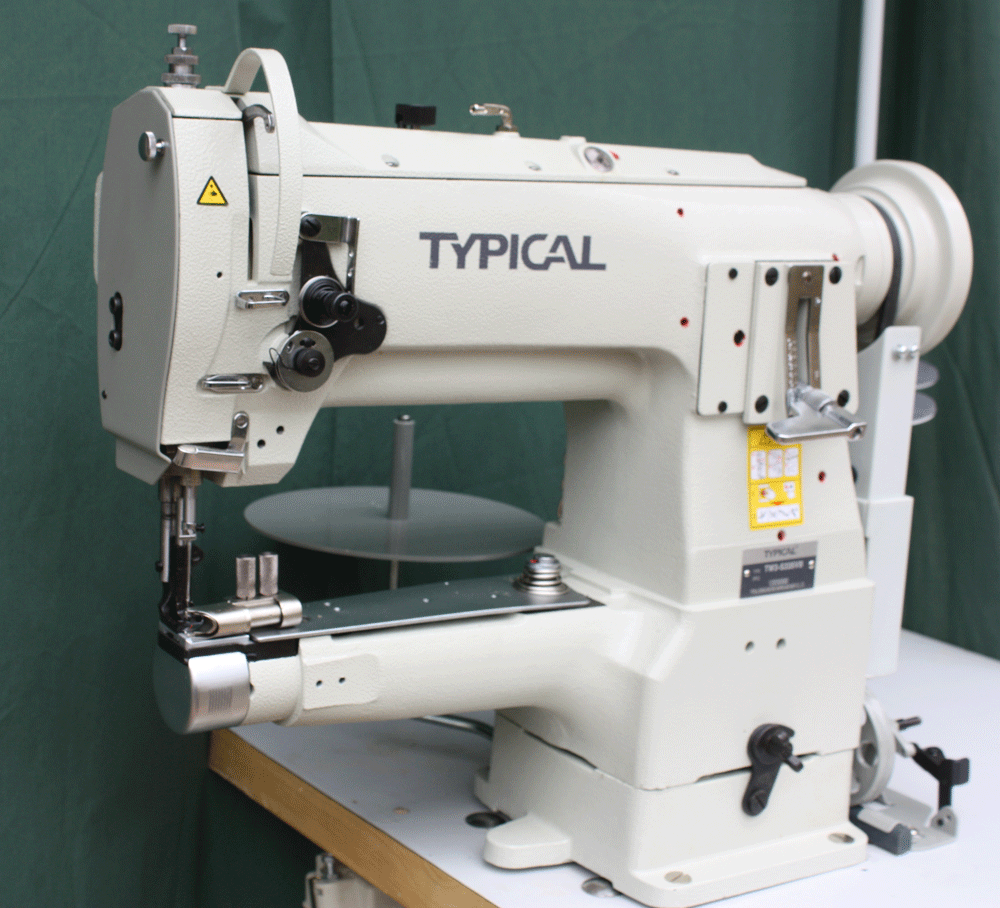

CAMSEW TW3-S335/VB Cylinder Arm, Compound Feed, Side Load Bobbin.

Specifications...

Typical industrial sewing machine Cylinder Arm.

Compound Feed.

Side load bobbin no need to remove work to change

Available with synchronised binder.

Complete with servo motor.

Heavy Duty Stand.

Speed reducer available.

Designed to do a days work everyday.

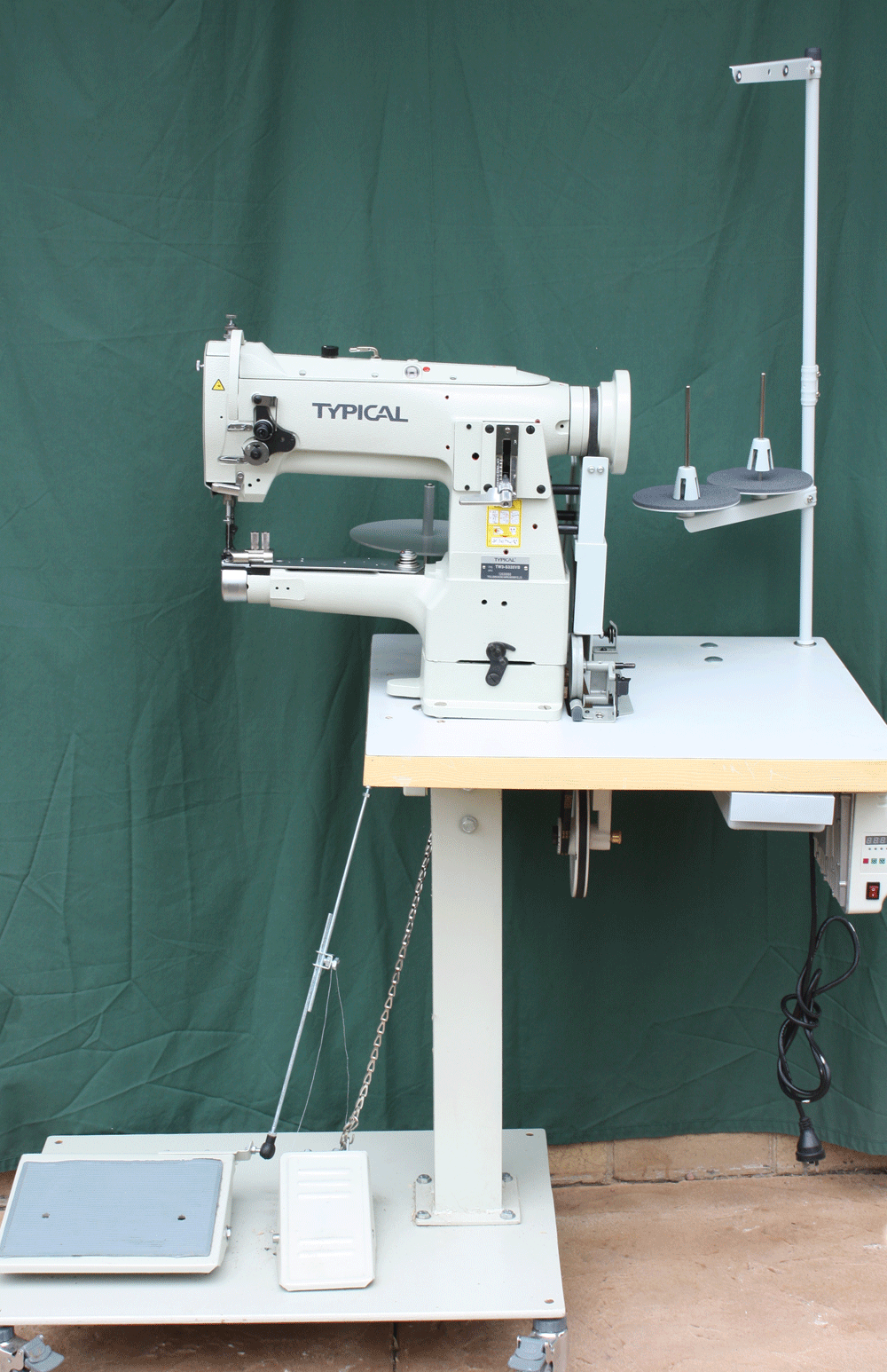

Compound Feed Camsew Typical TW3-S335 Binder stand included
Typical industrial sewing machine compound feed Typical industrial sewing machine binder Typical industrial sewing machine cylinder arm
Typical industrial sewing machine binder ide load bobbin, no need to remove work to change bobbin. Typical industrial sewing machine compound feed

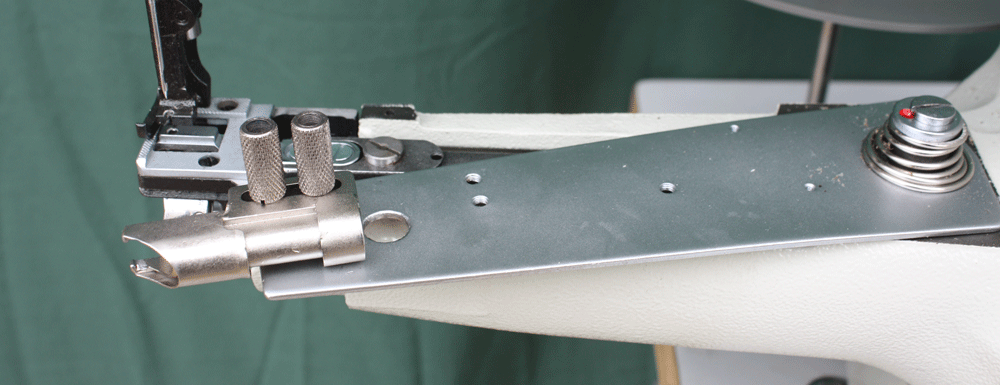

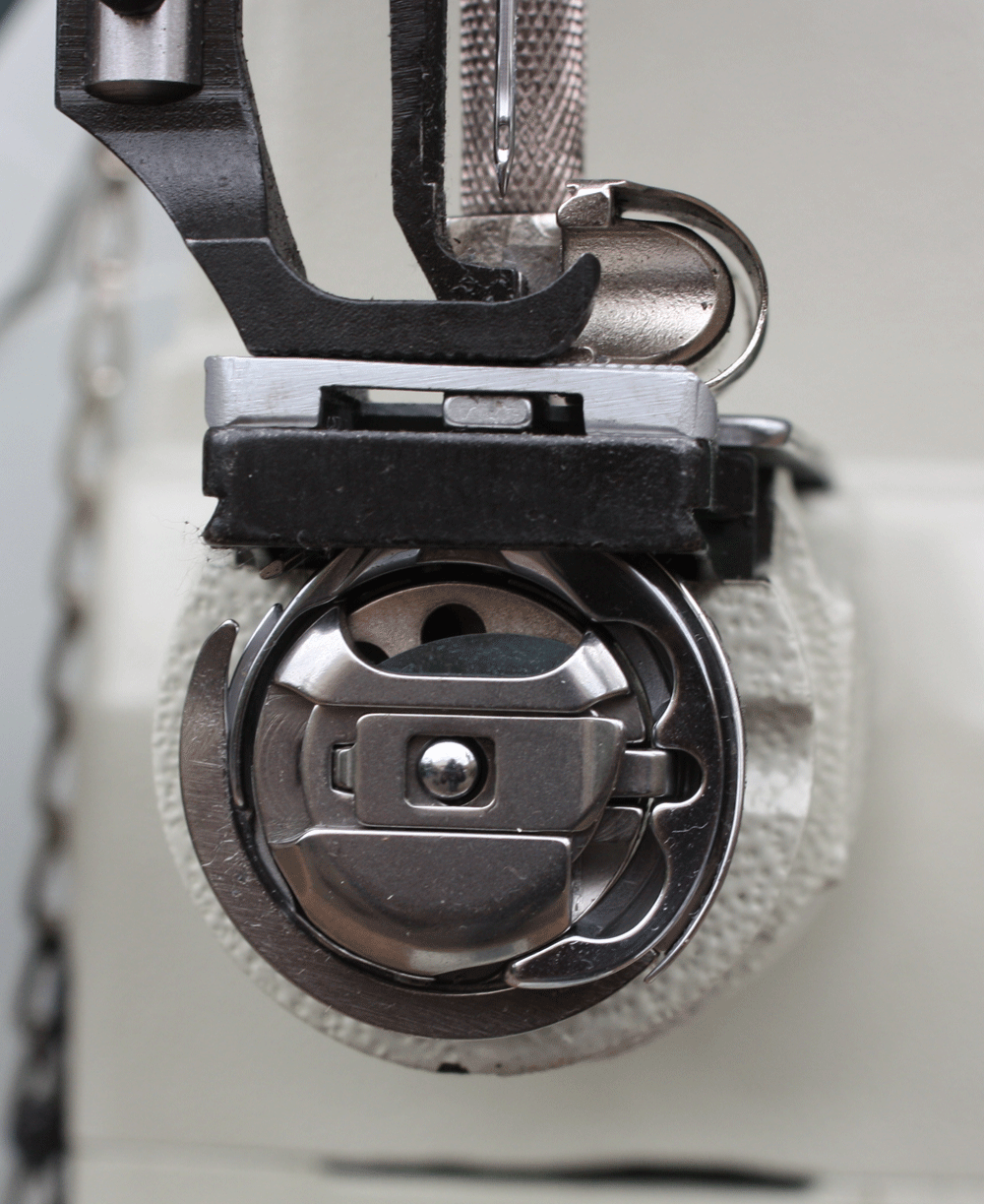

Synchronised Binder Bobbin Case, and Large Bobbin 25 X 11mm  Stitch Length to 6.5mm
Typical industrial sewing machine compound feed
Price includes delivery, set up, 12 months on site warranty (Melbourne Metropolitan Area)

All other areas a $100.00 discount towards freight.

 12 months return to point of purchase for warranty claims.

 TW3-S335B

$2,500.00 + GST

TW3-S335VB

With Synchronised Binder

$2,600.00 + GST
Model  Thread
Size 		 Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area Dedicated Binding In Stock Needle Made In
TW3-S335 M20  Lockstitch  0-6.5 mm  Std Compound Feed 2200  13 mm Foot Pedal 25 X 11 cm     No 135X17  China
TW3-S335V M20  Lockstitch  0-6.5 mm  Std  Compound Feed 2200  13 mm Foot Pedal 25 X 11 cm   No 135X17  China
TW3-S335B M20  Lockstitch  0-6.5 mm  Large 25X11mm  Compound Feed 2200  13 mm Foot Pedal 25 X 11 cm     No 135X17  China
TW3-S335VB M20  Lockstitch  0-6.5 mm  Large 25X11mm  Compound Feed 2200  13 mm Foot Pedal 25 X 11 cm   No 135X17  China

Motor Type Output Power Amps RPM Made In
Doso... Servo 450 Watts
0.6 HP		 0.3 3600 China
PowerMax Servo 750 Watts
1 HP		 0.3 3500 China
