CAMSEW

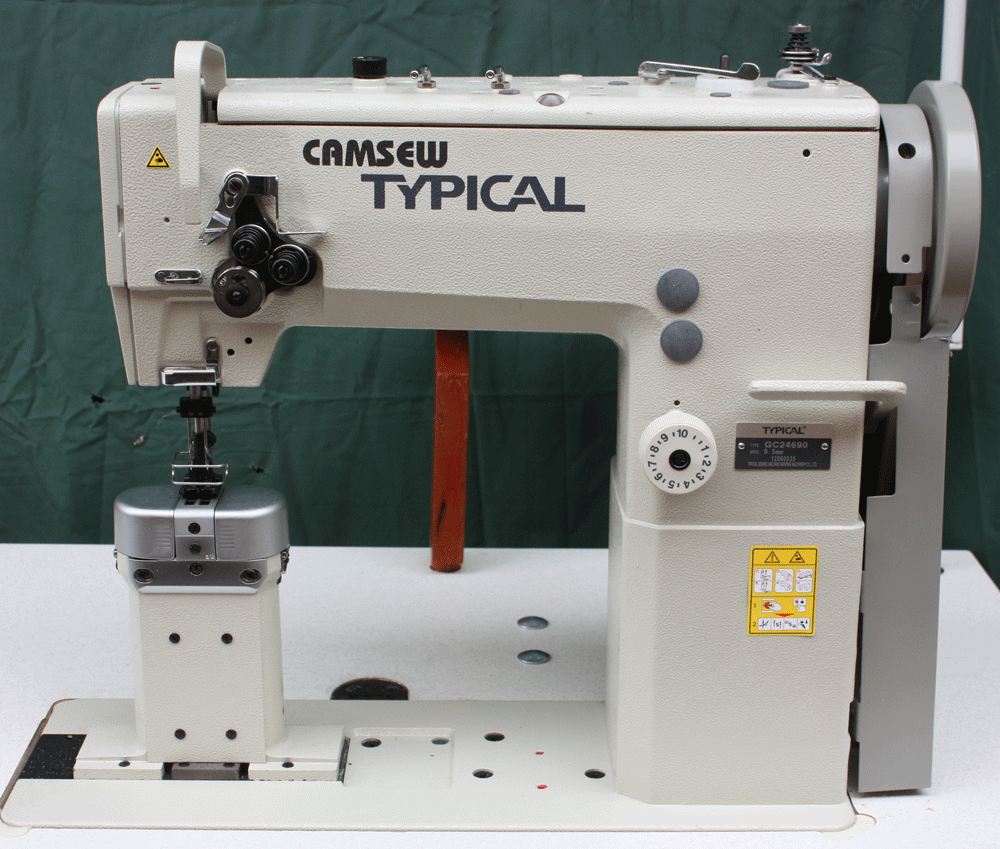

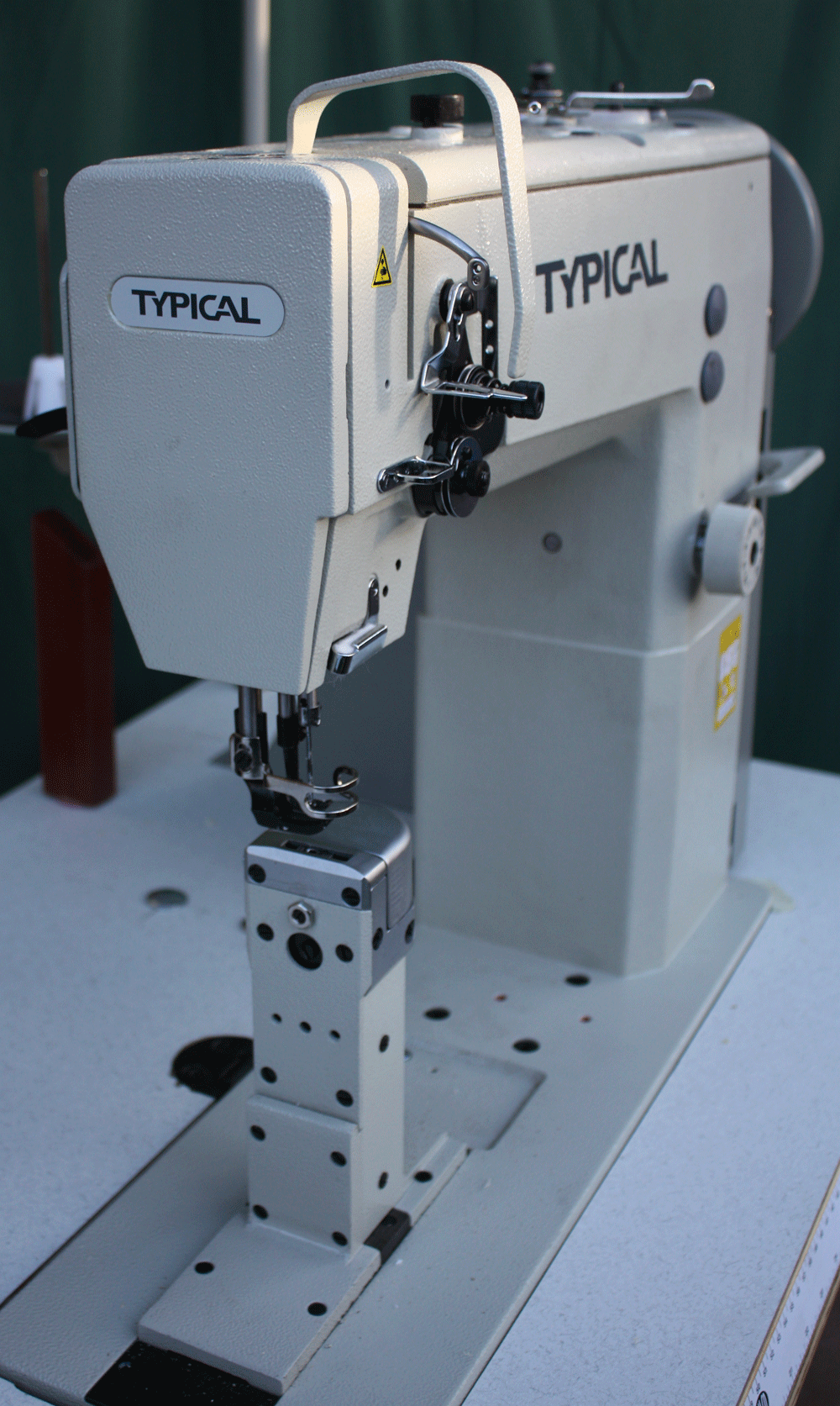

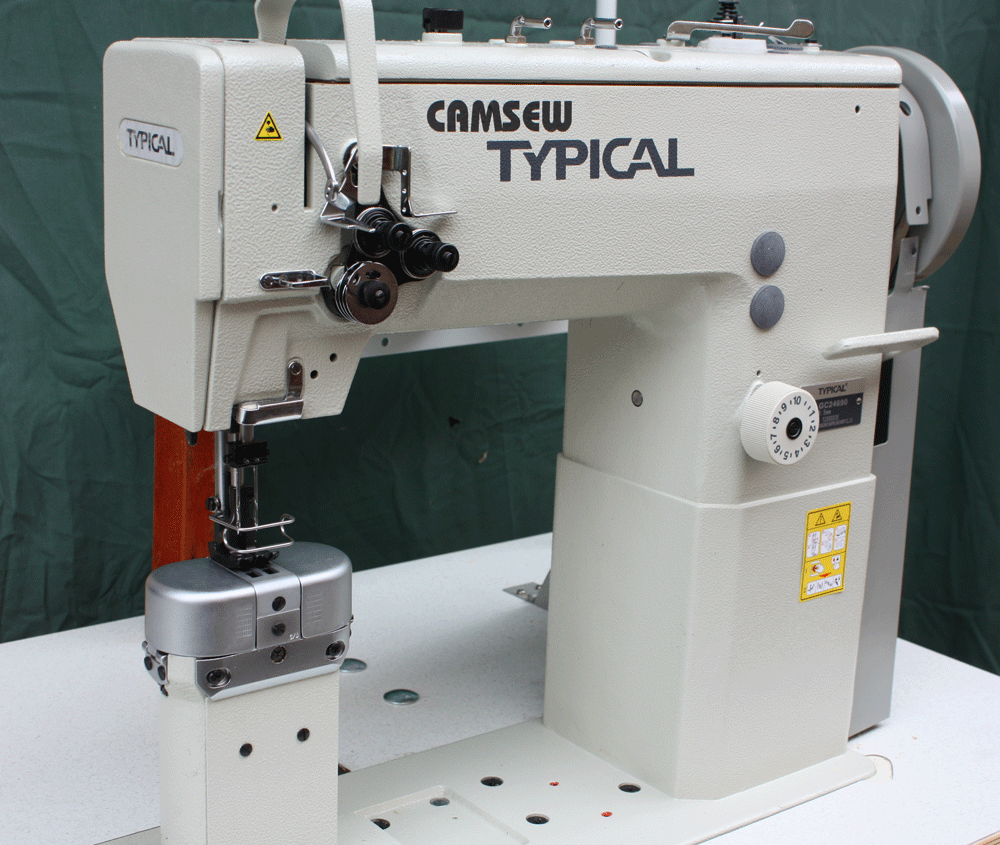

GC24690, 2
Needle, GC24690-1, 1 Needle Post Bed, Compound Feed.
 |

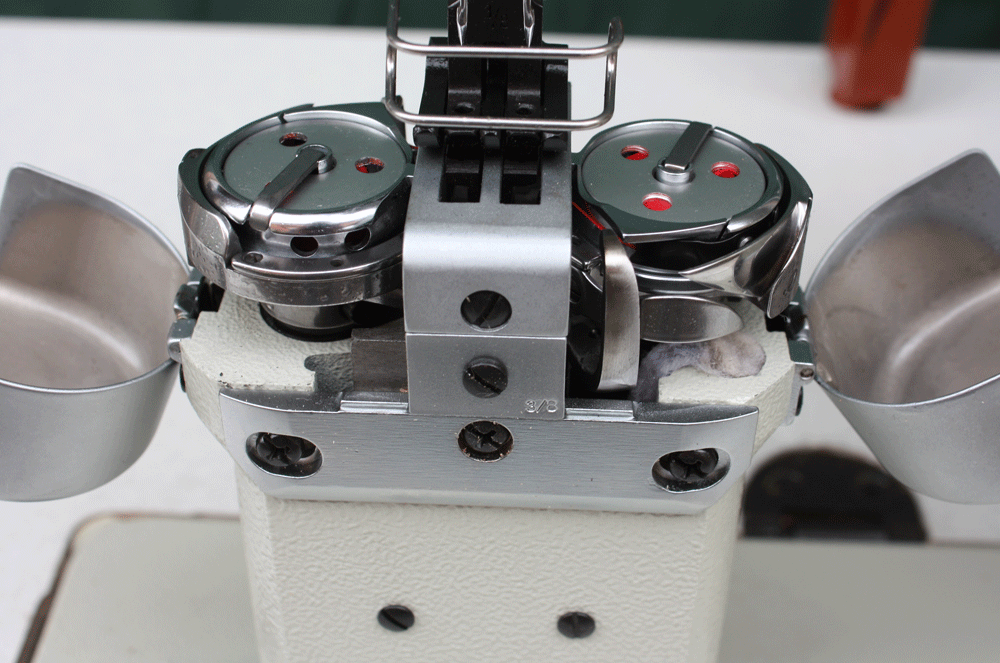

Post bed, compound feed (Walking foot). Choice of Servo Motors. Top load bobbin. Simi Auto lubrication. Stitch length to 10mm. Designed to do a days work everyday. |
||||||||||
|
|||||||||||
 |
Price includes delivery, set up, 12 months on
site warranty. (Melbourne Metropolitan Area)
All other areas a $100.00 discount towards freight. 12 months warranty entry return to point-of-purchase. GC024690 Post Bed 2 Needle $3,300.00 + GST GC024690-1 Post Bed 1 Needle $3,000.00 + GST |
||||||||||
| Model |
Thread Size |
Stitch | Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Work Area |
Bed Dimensions |
Needle | Made In |
|
GC24690 GC24690-1 |
M20 | Lockstitch | 0-10 mm | Large 29X12 | Compound Feed | 2000 | 16 mm Knee Press | Very Large | 52 X 18cm | 135X17 | China |
| Motor | Type | Model | Volts | Output Power | HP | RPM | Made In | Price + GST | More |
| PowerMax... | Servo | ASU27-55 | 180-284 |
550 Watts |
0.74HP | 5000 | China | Included | PowerMax... |
| PowerMax... | Servo | ASU27-75 | 180-284 | 750 Watts | 1.0HP | 3000 | China | plus $55.00 | |
| Ho Hsing... | Servo | MJ | 200-240 | 600 Watts | 0.8HP | 3000 | Taiwan | plus $120.00 | Ho Hsing... |
