Typical industrial sewing machines

GC0313D2 Walking Foot Auto Thread Trim.

Specifications...

Heavy duty industrial sewing machine

 Fully Automatic Thread Trim.

Direct Drive Servo Motor with Synchroniser.

Built in Bobbin Winder, and Light.

Takes Standard Feet.

Extended Arm 330 X 130mm

for More Work Clearance.

Budget priced.

Designed to do a day’s work every day.

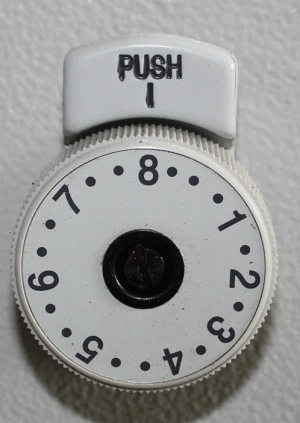

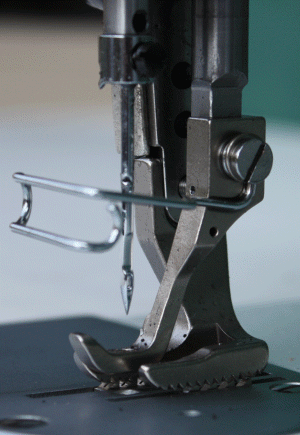

Stitch Length to 8mm Typical GC0313D2 Auto. Thread Trim. Takes Std. Walking Foot Feet.

330 X 130mm for More Work Clearance.

full certification for this machine

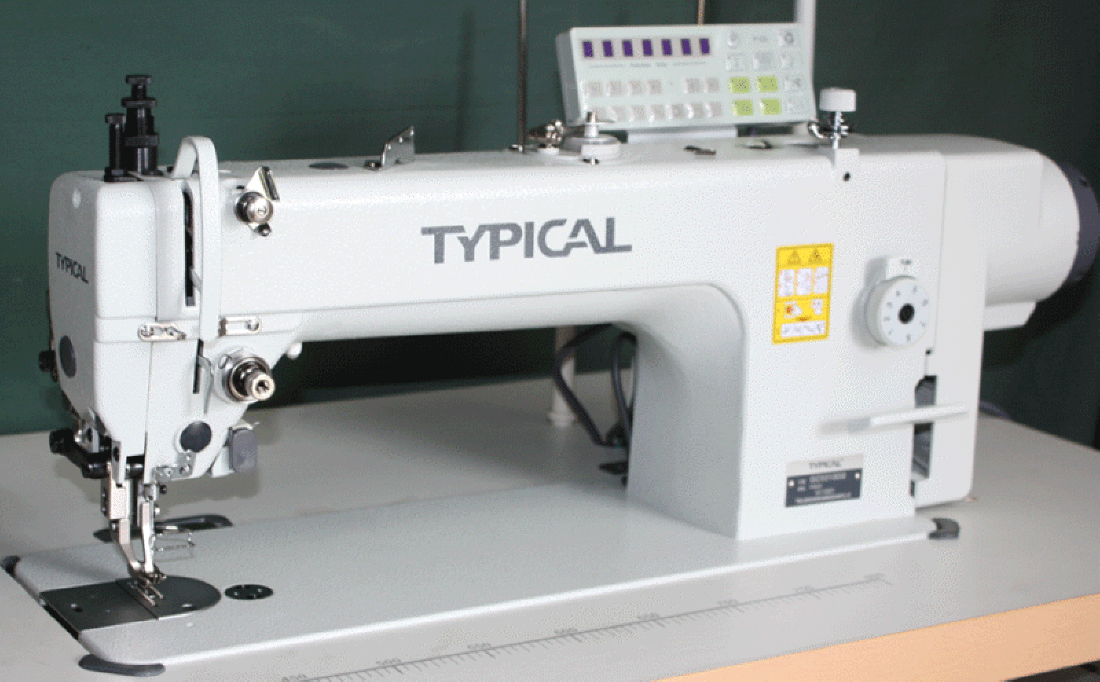

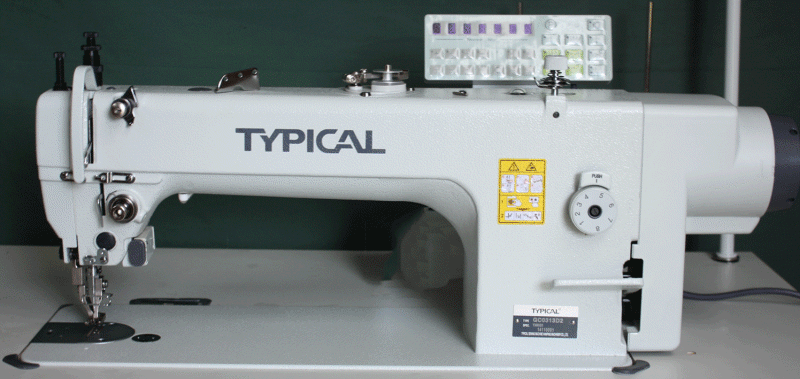

Auto thread trim heavy duty industrial sewing machine
Typical compound feed, side load industrial sewing machine bobbin

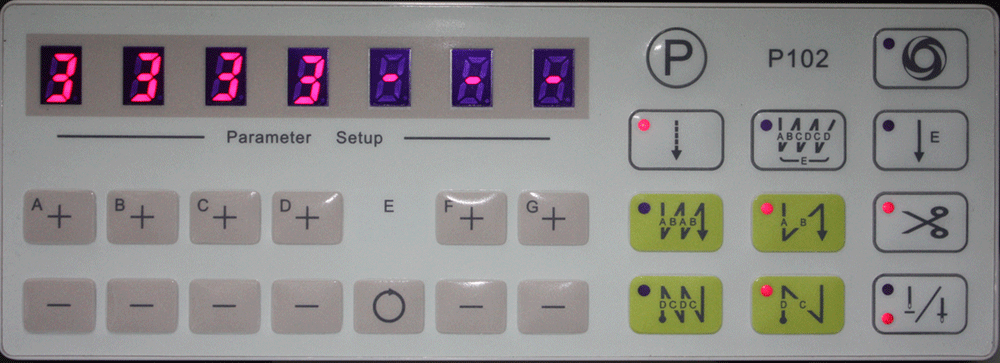

Built in bobbin winder Full Featured Panel. Automatic Lubrication from oil pump
NO HIDDEN COSTS.
Price includes delivery, set up, 12 months on site warranty
(Melboune Metropolitan Area)

All other areas a $100.00 discount towards freight,

 with 12 months return to point of purchase for warranty claims.

 GC0313D2 Fully auto with Direct Drive Servo Motor

$2,600.00 + GST

Prices are a guide only and subject to change without notice

 		once site service Melbourne Metropolitan area parts available for this machine
 All Parts Available
Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
 Needle Built
in light		 Made In
GC313D2    Heavy  Lockstitch   0-8mm  Large
 25X11mm		 Walking Foot 2000  15mm Knee Press   33 X 13 cm   47.5X18cm  135X17 DPX17  Led. China

Automatic Model  Thread Trim Back Tack 2 Start Back Tack 2
Finish		 Back Tack 4
Start		 Back Tack 4
Finish		 Max. Tack
Stitches

Programmable

Turn on/off
Trim
6 Bar Tack
 Reverse
Switch		 Change Needle
up/Down
GC0313D2   P102

Motor Type Output Power Amps RPM Made In
Typical Direct Drive Servo, Synchroniser, and top Speed adjustment. 750 Watts
0.75 HP		 0.3 Top Speed Adjustable China
