CAMSEW

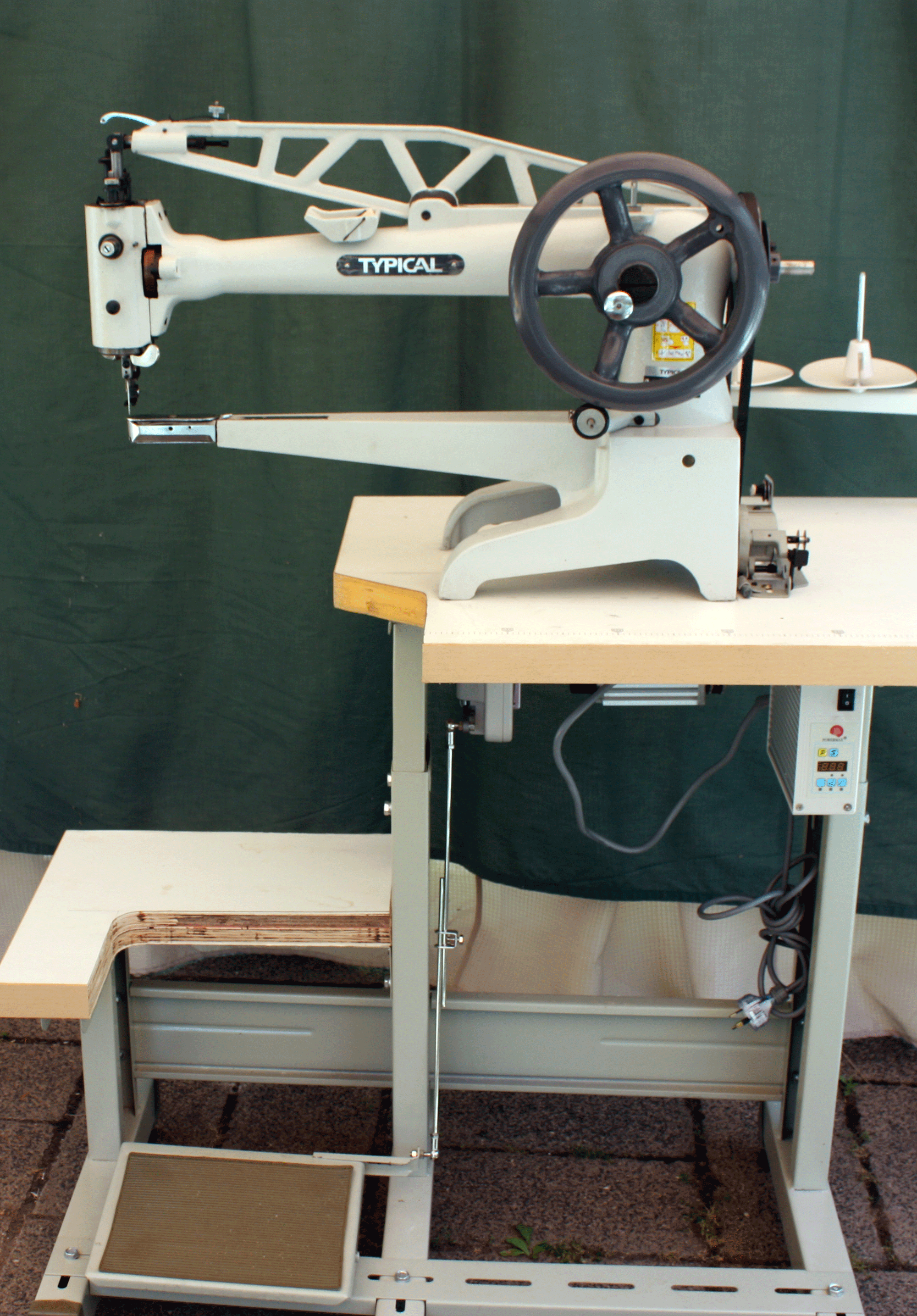

2972BL18 Long Arm Boot Patch.
Head only or complete with bench, and choice of servo motors.
 |
18 inch long arm boot patch
(shoe repair machine) Large bobbin. Available head only, our
complete on bench with servo motor. Designed to do a days work everyday. |
||||||
|
|||||||
 |
Price includes delivery, set up, 12 months on
site warranty.
(Melbourne Metropolitan Area)
All other areas a
$100.00
discount towards freight.
Typical Boot Patch GB2972BL18 $2,300.00 +GST Complete on bench with servo motor. $1,900.00 GST Head only Prices are a guide only, and subject to change without notice. |
||||||
Options
Bench mounted led light.
Australian made benchtop.
Comparison, Specifications, and Price.
prices are a guide only, and subject to change without notice.
| Model |
Thread Size |
Stitch | Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Cylinder Dia. | Work Area | In Stock | Needle | Made In | Price + GST |
| GB-2972B-L18 | M20 | Lockstitch | 0-6 mm | Large 20X10mm | Walking foot | 1000 | 11 mm Foot Pedal | 30X25mm | 65 X 12.5 cm | Yes | 135X17 | China | $2,300 Complete $1,900 Head |
| GB-2972B | M20 | Lockstitch | 0-6 mm | Large 20X10mm | Walking foot | 1000 | 11 mm Foot Pedal | 30X25mm | Standard | Yes | 135X17 | China | $1,900. Complete $1,500. Head |
| Motor | Type | Model | Volts | Output Power | HP | RPM | Made In | Price + GST | More |
| PowerMax... | Servo | ASU27-55 | 180-284 |
550 Watts |
0.74HP | 5000 | China | Included | PowerMax... |
| PowerMax... | Servo | ASU27-75 | 180-284 | 750 Watts | 1.0HP | 3000 | China | plus $55.00 | |
| Ho Hsing... | Servo | MJ | 200-240 | 600 Watts | 0.8HP | 3000 | Taiwan | plus $120.00 | Ho Hsing... |
