GC20665L14-D2T4 Automatic Thread Trim and Reverse, Direct Drive Long Arm, Walking Foot Compound Feed, Top Load Bobbin.

Specifications...


Integrated European design concept.
High torque servo direct drive motor, delivers power (750 Watts), and excellent control at low speed  (2500 RPM.)
Led light, dimmable to suit operator needs. Handy quick reverse switch, and needle position.
Electronic thread nipper to reduce bird's Nest at start.
9mm stitch length, with stitch length lock to provide stable stitch length. Short stitch to long stitch without touching stitch length dial. vice versa.
Full featured control panel for automatic stitches. Plus sub control panel in easy reach, and knee press control for auto switching.
Climbing device, auto switching to increase foot climb for cross seams. Second thread tension switches on for thick heavy material.
Built in bobbin winder, and automatic lubrication.
Throat size 360 mm x 103 mm. (The area to the right of the needle)
Automatic foot lift included, available with electronic or pneumatic.
Typical GC20665L14-D2T4 $4,000.00 + GST.
Prices are a guide only, and subject to change.
No Hidden Costs

In Melbourne and surrounding areas

price includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE OFFICE IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.

In Sydney, Gold Coast, Adelaide, Brisbane Perth.

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight by TNT could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.
Walking Foot
Compound Feed

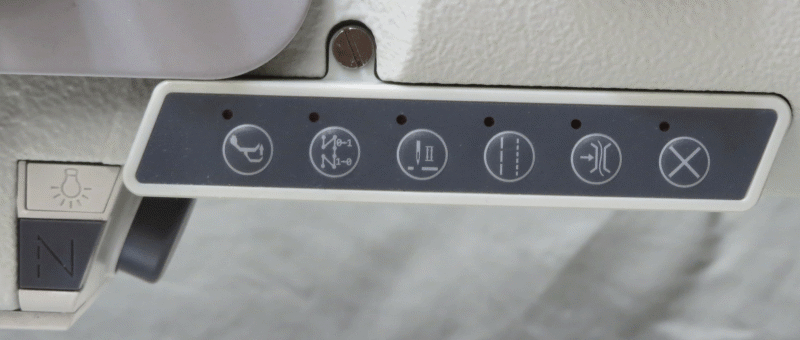

Full Featured Control Panel.		 Easy to Adjust Climbing Device


Built in bobbin winder Ideally positioned sub panel for frequent stitch settings Stitch Length to 9mm
with locking device
Model  Thread
Size 		 Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
 Needle Made In
GC20665KL14-D3T3 M20  Lockstitch  0-9 mm  Large 25X11mm  Walking foot 2500  16 mm Knee Press
and Auto.		 360 X 103 cm     135X17  China
Motor Type Output Power Amps RPM Made In
Typical Servo 750 Watts
0.75 HP		 0.3 2500 adjustable. China

Automatic Model  Thread Trim Back Tack 2 Start Back Tack 2
Finish		 Back Tack 4
Start		 Back Tack 4
Finish		 Max. Tack
Stitches

Programmable

Turn on/off
Trim
6 Bar Tack
 Reverse
Switch		 Change Needle
up/Down
YSC-8361
