GC2263-1B Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Auto lube.

Specifications...

Integrated European design concept.
High torque Ho Hsing G60 servo motor, delivers power (600 Watts), and excellent control at low speed,  top speed (2500 RPM.)
Automatic lubrication enables high-speed 2500 rpm
Led light.
8mm stitch length, with stitch length lock to provide stable stitch length.
New designed stitching mechanism which gives reliable feeding.
Built in bobbin winder, and automatic lubrication.
Throat size 255 mm x 110 mm. (The area to the right of the needle)
Available with auto thread trim, et cetera, and 2 needles.
Typical GC2263-1B $2,850.00 + GST.
Prices are a guide only, and subject to change.
No Hidden Costs

In Melbourne and surrounding areas

price includes delivery, set up, with 12 months on site warranty parts and labour.

IF YOU ARE ABLE TO PICKUP FROM OUR MELBOURNE BUSINESS IN RINGWOOD THEN YOU CAN SAVE $110.00 OF THE GST INCLUSIVE PRICE.

SAVE AN ADDITIONAL $110.00 IF YOU ASSEMBLE THE TABLE AND FIT THE MACHINE, FULL INSTRUCTIONS PROVIDED.

$AVE A TOTAL OF $220.00 OF THE GST INCLUSIVE PRICE.

In Sydney, Gold Coast, Adelaide, Brisbane,Perth.

price includes delivery by local mechanic, set up, with 12 months on site warranty parts and labour.

Freight could apply from Melbourne to your area.

IN ALL CASES THE MACHINE IS CHECKED AND STITCHED OFF.

ALL OTHER AREAS NOT LISTED ABOVE GET A $110.00 DISCOUNT TOWARDS THE FREIGHT.

 12 months return to point of purchase for warranty claims.
Walking Foot
Compound Feed
Standard Feet

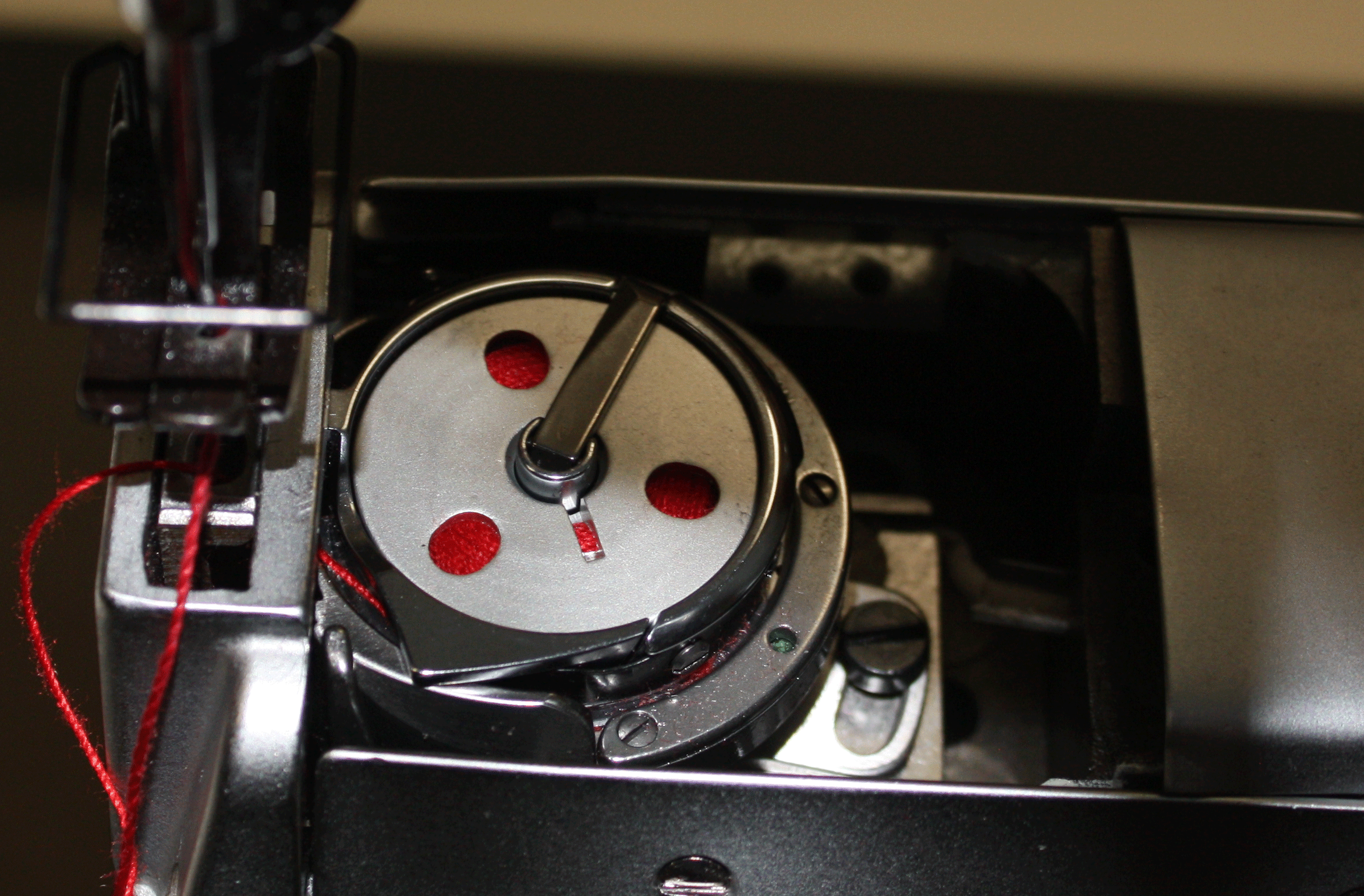

Large top load bobbin 25X11mm.

Built in bobbin winder   Stitch Length to 8mm
Model  Thread
Size 		 Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Arm Dia.		 Needle Made In
GC2263-1B M20  Lockstitch  0-8 mm  Large 25X11mm  Compound 2500  16 mm Knee Press
 255X110 mm   72m  135X17  China
Motor Type Output Power Amps RPM Made In
Ho Hsing Servo 600  Watts
0.75 HP		 0.3 2500 adjustable. Taiwan
