Typical industrial sewing machines

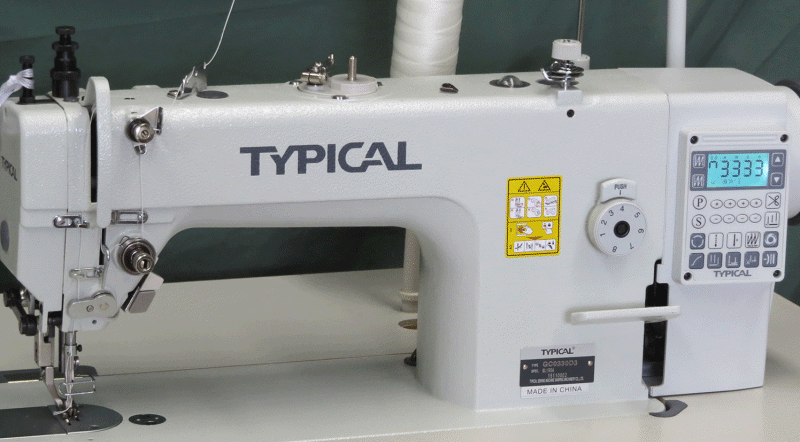

GC0330-D3T2 Drect Drive, Walking Foot, Inbuilt Control Panel, Auto Thread Trim, Auto Foot Lift.

All for $2,200.00 Plus GST

Specifications...

Typical new model fully automatic industrial sewing machine

 Fully Automatic Thread Trim.

Direct Drive Servo Motor with Synchroniser.

Built in Bobbin Winder, and Light.


Takes Standard Feet.

120mm Arm Height for More Work Clearance.

Budget priced.

Designed to do a day’s work every day.

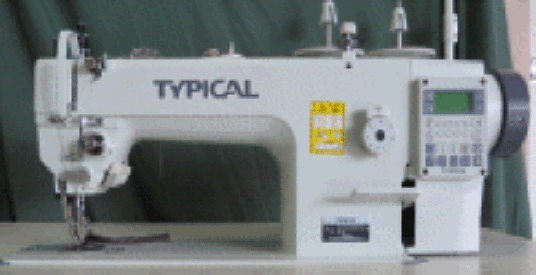

Stitch Length to 8mm Typical GC330-D3T2 Auto Thread Trim. Control Panel with full features.


full certification for this machine

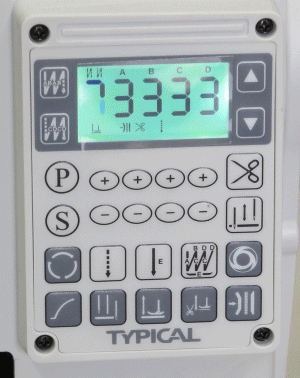

 full featured Control Panel
Typical compound feed, side load industrial sewing machine bobbin once site service Melbourne Metropolitan area  all parts available
Built in bobbin winder On site service (Melbourne Metropolitan area). All parts available. Automatic Lubrication from oil pump
NO HIDDEN COSTS.
Price includes delivery, set up, 12 months on site warranty
(Melboune Metropolitan Area)
Now available Adelaide, Brisbane, Gold Coast, Geelong,Ballarat, Bendigo, Latrobe Valley.

All other areas a $100.00 discount towards freight,

 with 12 months return to point of purchase for warranty claims.

See More Details...

 GC0330-D3 Fully auto with Direct Drive Servo Motor

$2,200.00 + GST

Prices are aguide only and subject to change without notice.
Model  Work Type  Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
 Needle Built
in light		 Made In
GC0330-D3    Medium-Heavy  Lockstitch   0-8mm  Large
 25X11mm		 Walking Foot  2000  16mm Knee Press   255mmX 120mm    475X180cm  135X17 DPX17  Led. China

Automatic Model  Thread Trim Back Tack 2 Start Back Tack 2
Finish		 Back Tack 4
Start		 Back Tack 4
Finish		 Max. Tack
Stitches

Programmable

Turn on/off
Trim
6 Bar Tack
 Reverse
Switch		 Change Needle
up/Down
GC0330-D3

Motor Type Output Power Amps RPM Made In
Typical Direct Drive Servo, Synchroniser, and top Speed adjustment. 750 Watts
0.75 HP		 0.3 Top Speed Adjustable China
