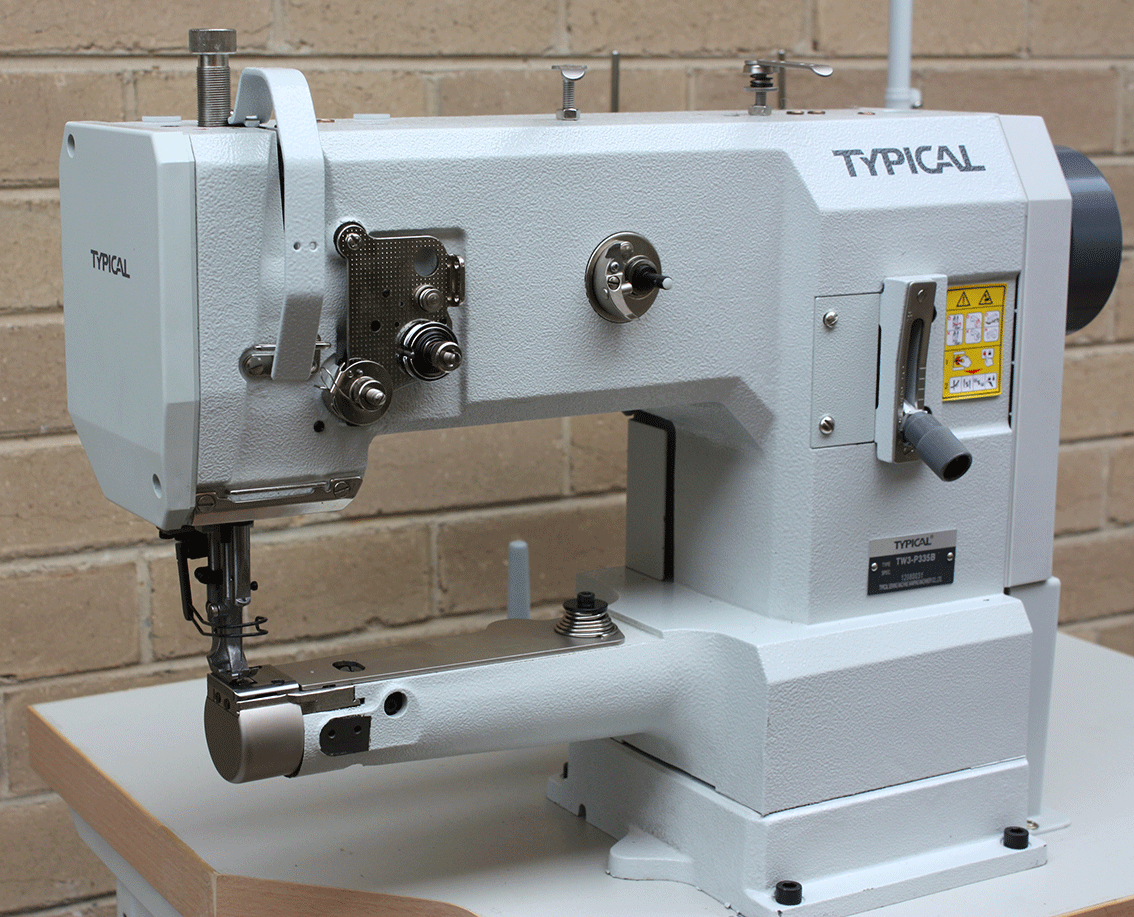

TW3-P335B and TW3-P335VB Synchronised binder.

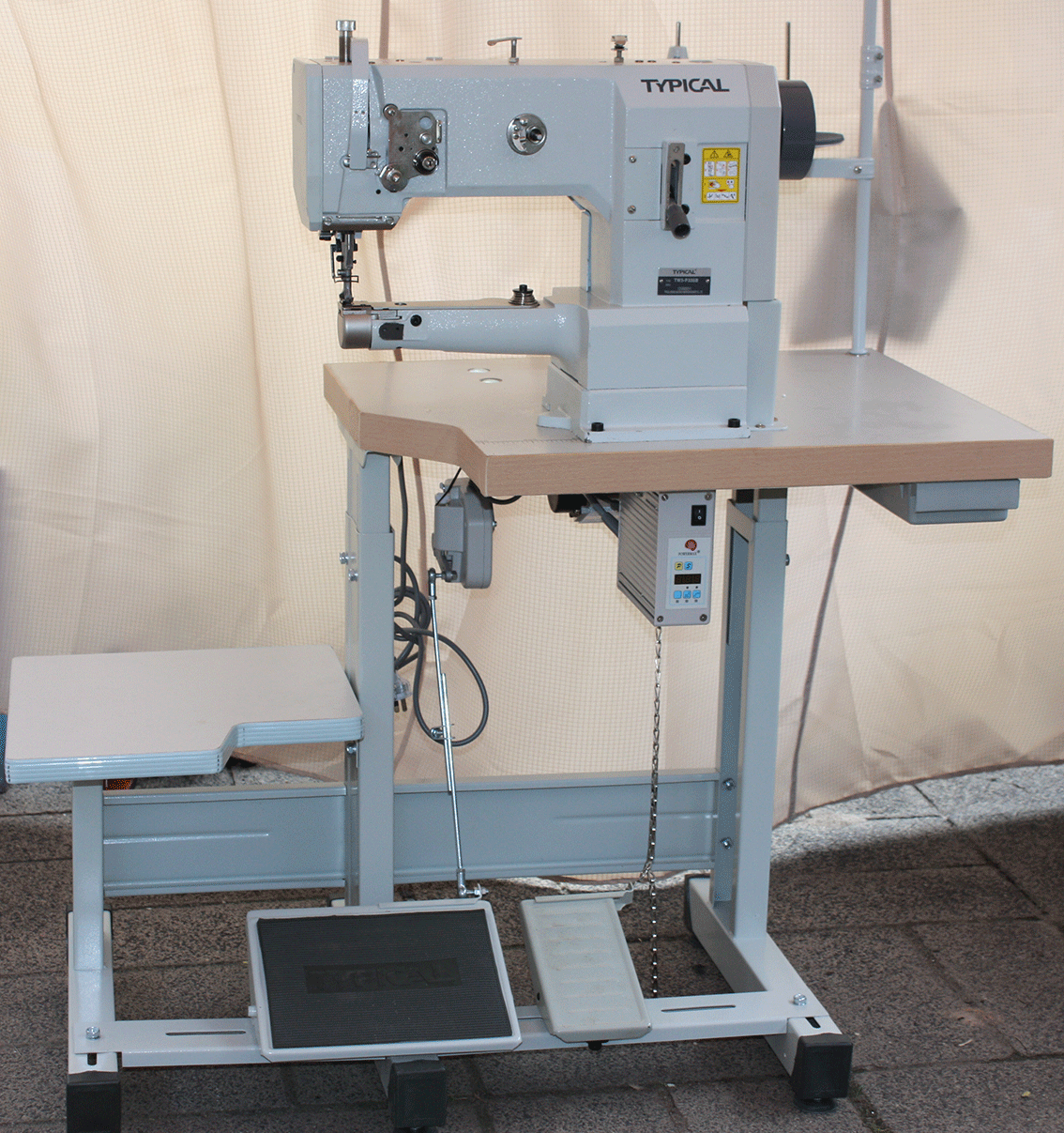

Complete with bench, and servo motor.
 |
Synchronised binder model available. Side load large bobbin. Simi auto lubrication Complete with servo motor. Designed to do a days work everyday. |
||||||||||||
|
|||||||||||||
 |
Price includes delivery, set up, 12 months on
site warranty.
(Melbourne Metropolitan Area)
All other areas a discount towards freight.
|
||||||||||||
Options
Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch foot
Bench mounted led light.
Australian made benchtop.
Comparison, Specifications, and Price.
prices are a guide only, and subject to change
| Model |
Thread Size |
Stitch | Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Cylinder Dia. | Work Area | Dedicated Binding | In Stock | Needle | Made In |
| TW3-P335 | M20 | Lockstitch | 0-6 mm | Standard | Compound Feed | 2200 | 14 mm Foot Pedal | 45mm | 26 X 11 cm | No | 134X17 | China | |
| TW3-P335V | M20 | Lockstitch | 0-6 mm | Standard | Compound Feed | 2200 | 14 mm Foot Pedal | 45mm | 26 X 11 cm |
 |
No | 134X17 | China |
| TW3-P335B | M20 | Lockstitch | 0-6 mm | Large 22X12.5mm | Compound Feed | 2200 | 14mm Foot Pedal | 45mm | 26 X 11 cm | Yes | 134X17 | China | |
| TW3-P335VB | M20 | Lockstitch | 0-6 mm | Large 22X12.5mm | Compound Feed | 2200 | 14 mm Foot Pedal | 45mm | 26 X 11 cm |
|
Yes | 134X17 | China |
| Motor | Type | Model | Volts | Output Power | HP | RPM | Made In | Price + GST | More |
| PowerMax... | Servo | ASU27-55 | 180-284 |
550 Watts |
0.74HP | 5000 | China | Included | PowerMax... |
| PowerMax... | Servo | ASU27-75 | 180-284 | 750 Watts | 1.0HP | 3000 | China | plus $55.00 | |
| Ho Hsing... | Servo | MJ | 200-240 | 600 Watts | 0.8HP | 3000 | Taiwan | plus $120.00 | Ho Hsing... |
